Forms, Formats and Figures — the training image library
Rajasthan ULB General Election 2026
Purpose. Every form, annexure and machine diagram the training material refers to, held here as an image of the official page, so trainers show the real format rather than a description of it.
Nothing here is redrawn or reconstructed. Each image is a direct render of the official PDF page, with its source and page number recorded. Where a form's content is summarised in a handbook, the summary carries the same citation as the image.
1. Where the images come from
| Set | Source document | Files |
|---|---|---|
| MG annexures | SEC, नगरपालिका चुनाव: पीठासीन अधिकारियों के लिए मार्गदर्शिका 2026 — Margdarsika_EVM_NP_2026.pdf | forms/MG_annex_pdf###_printed###.png |
| Circular 2184 annexures | 2184.pdf, Annexures 1–11 | forms/C2184_Annexure_p0##.png |
| Forms 21 / 22 / 23 | Order 1374 dated 04.02.2026 (सां.आ. 155/2026) — 13740017.pdf | forms/Form21_22_23_from_SO155_p00#.png |
| MPSV machine figures | ECIL MPSV manual — manual | figures/MPSV/page_##.png |
File naming for MG annexures: MG_annex_pdf114_printed110.png = PDF page 114, which is printed page
110 of the Margdarsika. The Margdarsika's PDF-to-printed offset is +4 throughout.
2. Presiding Officer's forms — in poll-day order
| Annexure | What it is | Printed pp | Image | Used by |
|---|---|---|---|---|
| परिशिष्ट-4 | RECEIPT FORM — POLLING ARTICLES No. (1), WHERE EVMs ARE USED (to be retained by the Presiding Officer) | 104 | pr104 | PRO §1 — receiving material |
| परिशिष्ट-6 | Declarations by the Presiding Officer — before the poll begins, during, and at the end | 122 | pr122 | PRO §2, §5 |
| परिशिष्ट-19 | मॉकपॉल प्रमाण पत्र (Mock Poll Certificate) — columns: क्र.सं. · name of the member participating in the mock poll · … | 131 | pr131 | PRO §3 — attach to परिशिष्ट-6; record at diary item 30 |

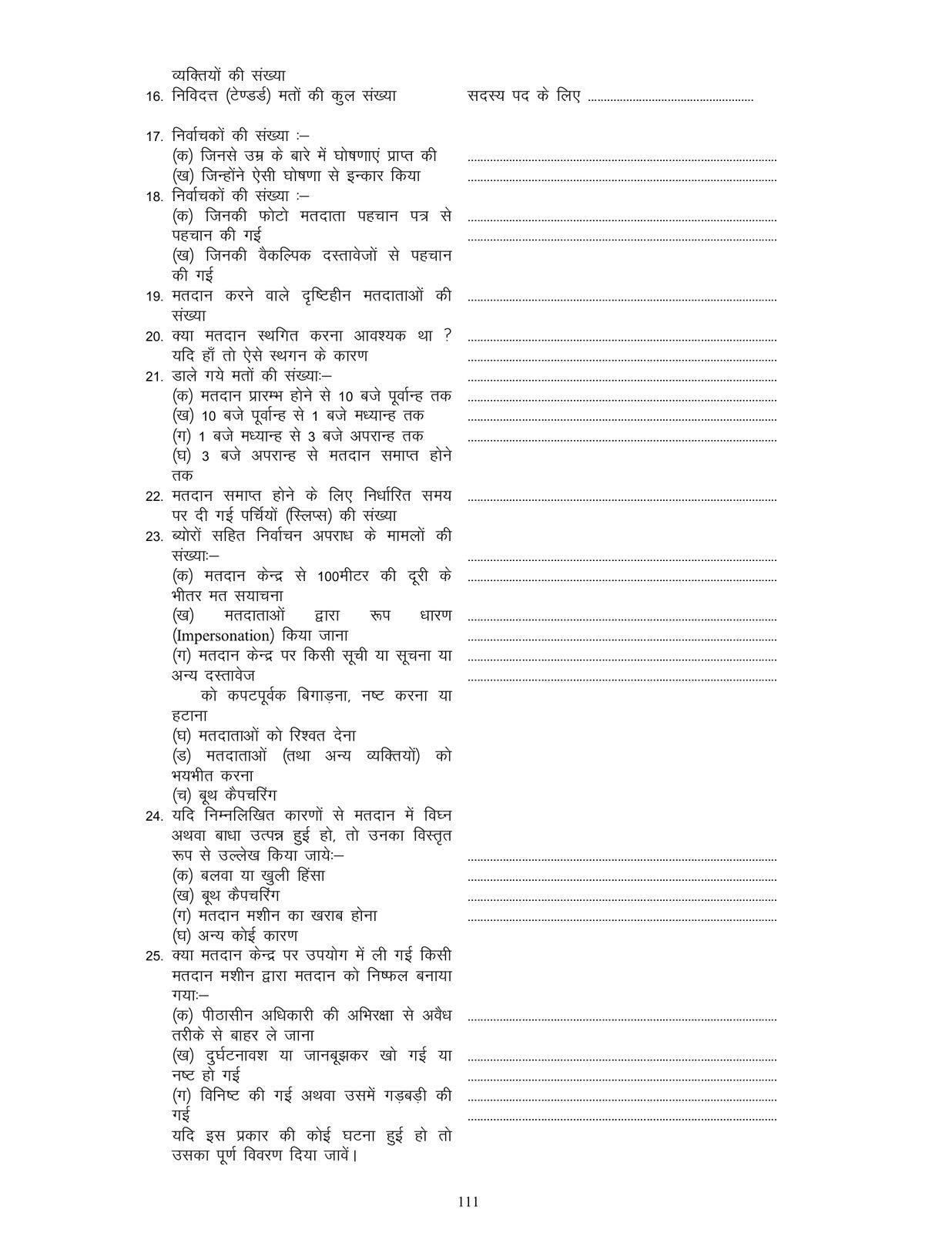

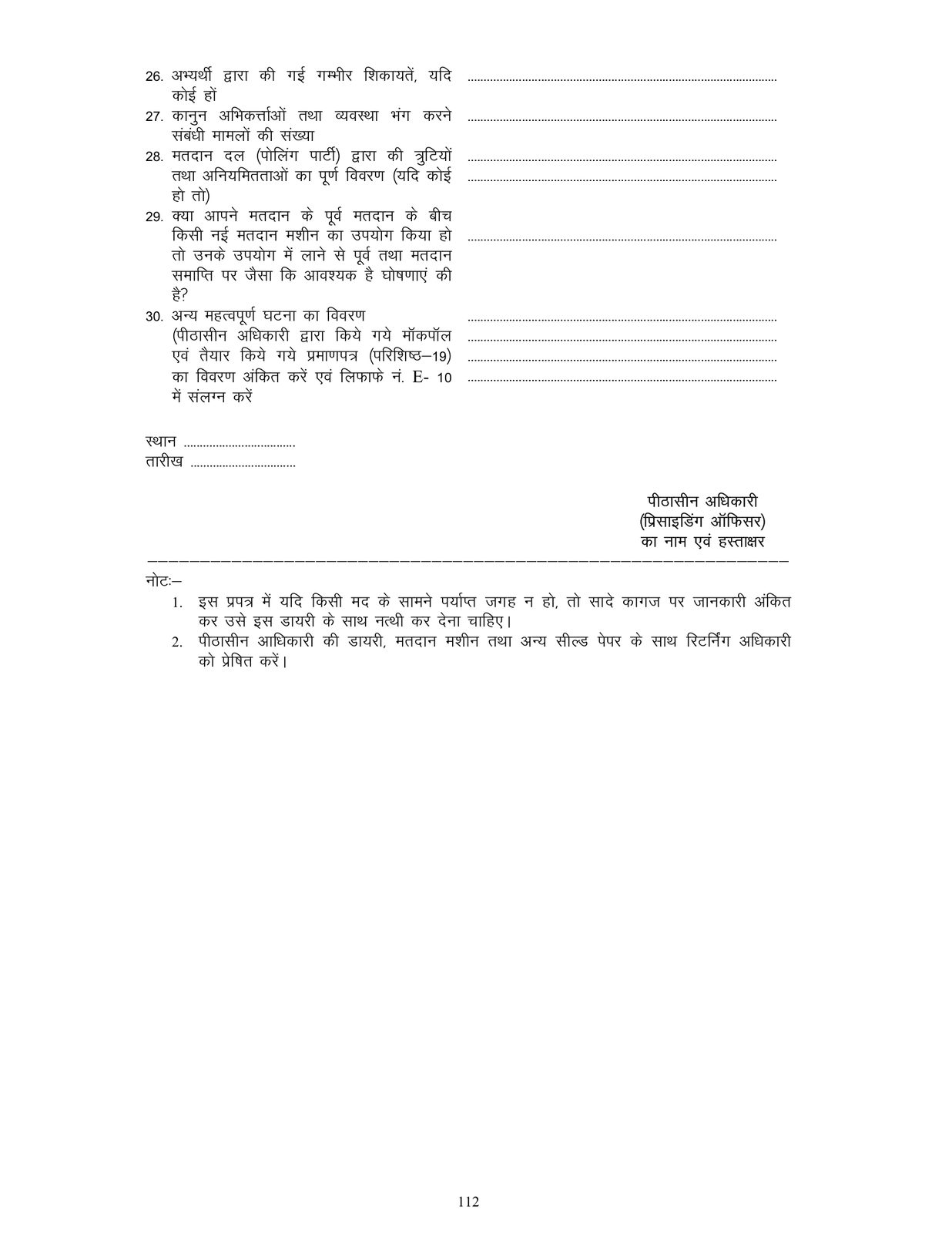

| परिशिष्ट-7 | पीठासीन अधिकारी की डायरी — Presiding Officer's Diary (3 pages, ~30 items) | 110–112 | pr110 · pr111 · pr112 | PRO — throughout |

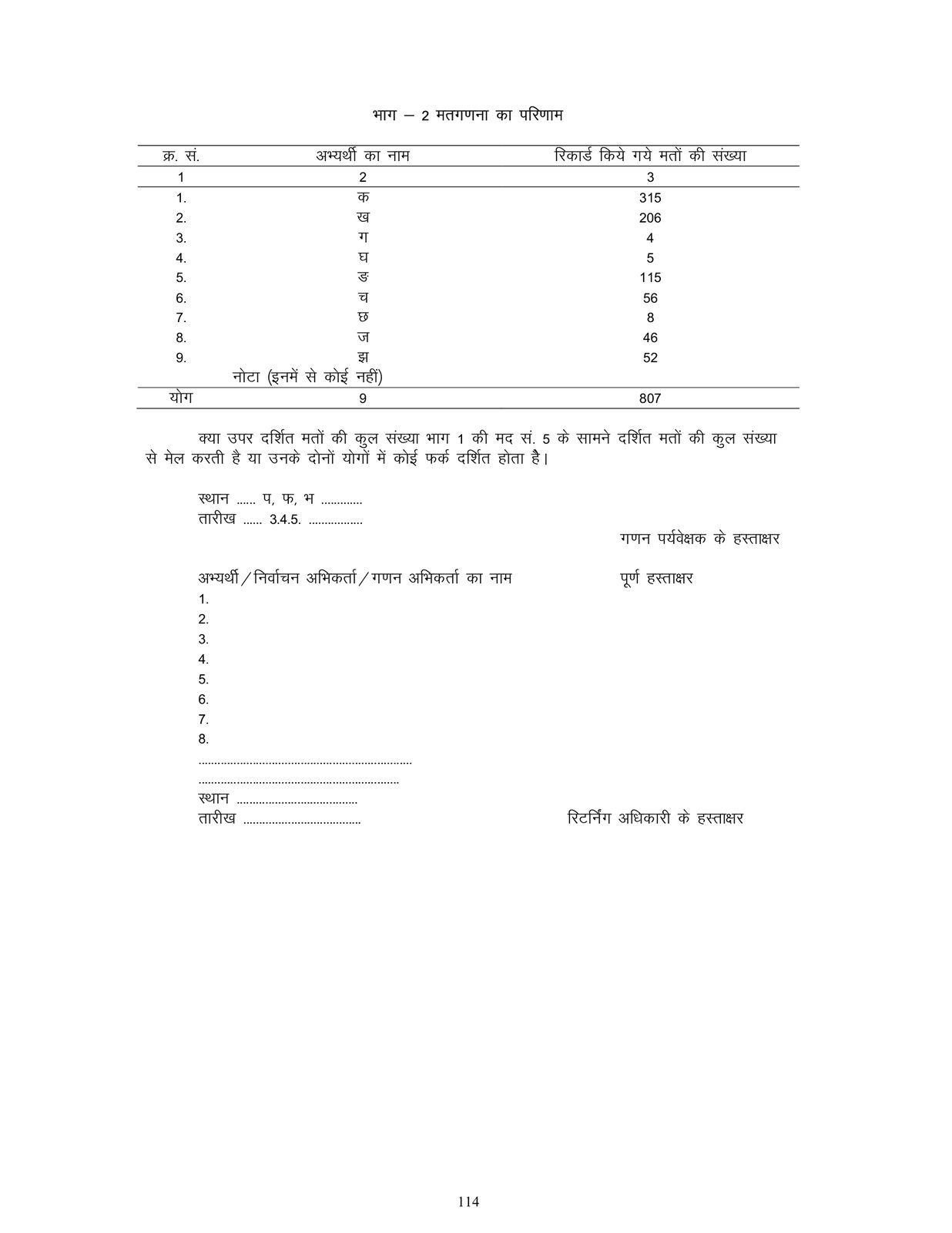

| परिशिष्ट-8 | प्ररूप 14-ग — नमूना (FILLED SPECIMEN) — account of votes recorded and paper seal account | 113–114 | pr113 · pr114 | PRO §6; Counting — the paper-seal match |

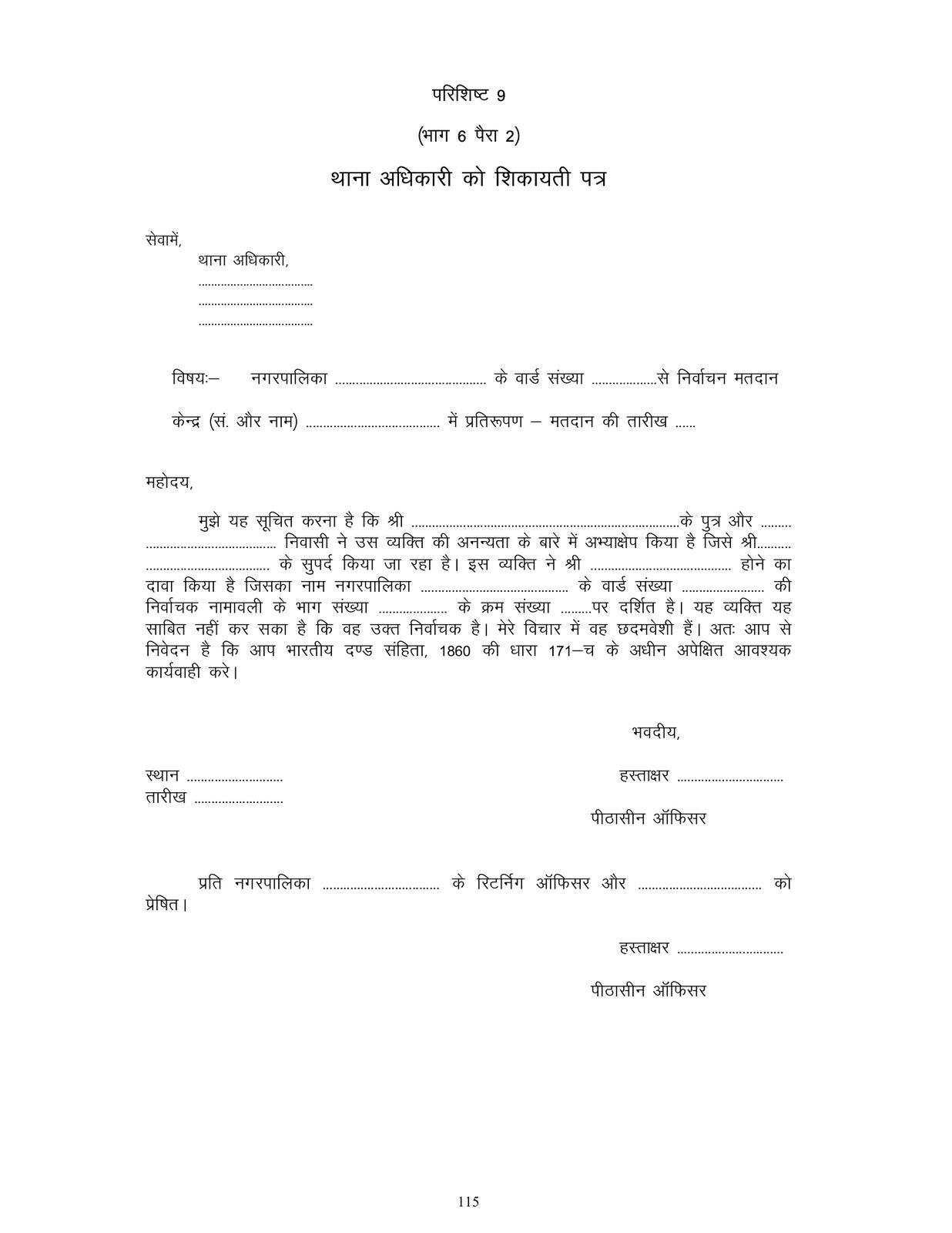

| परिशिष्ट-9 | थाना अधिकारी को शिकायती पत्र — complaint letter to the SHO (Part 6, para 2) | 115 | pr115 | PRO — law and order |

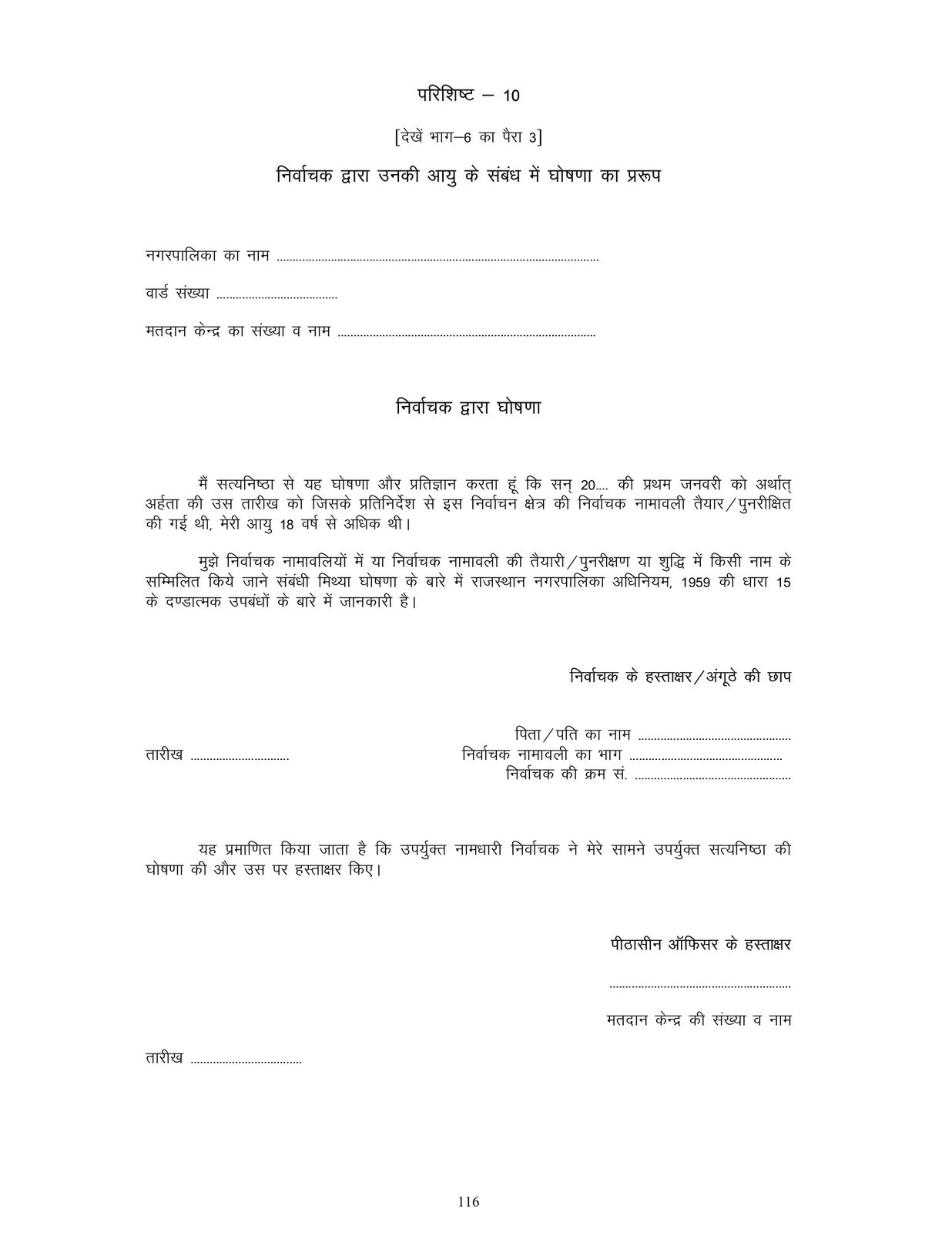

| परिशिष्ट-10 | निर्वाचक द्वारा आयु के संबंध में घोषणा — elector's declaration as to age (Part 6, para 3) | 116 | pr116 | PO-1 / PRO |

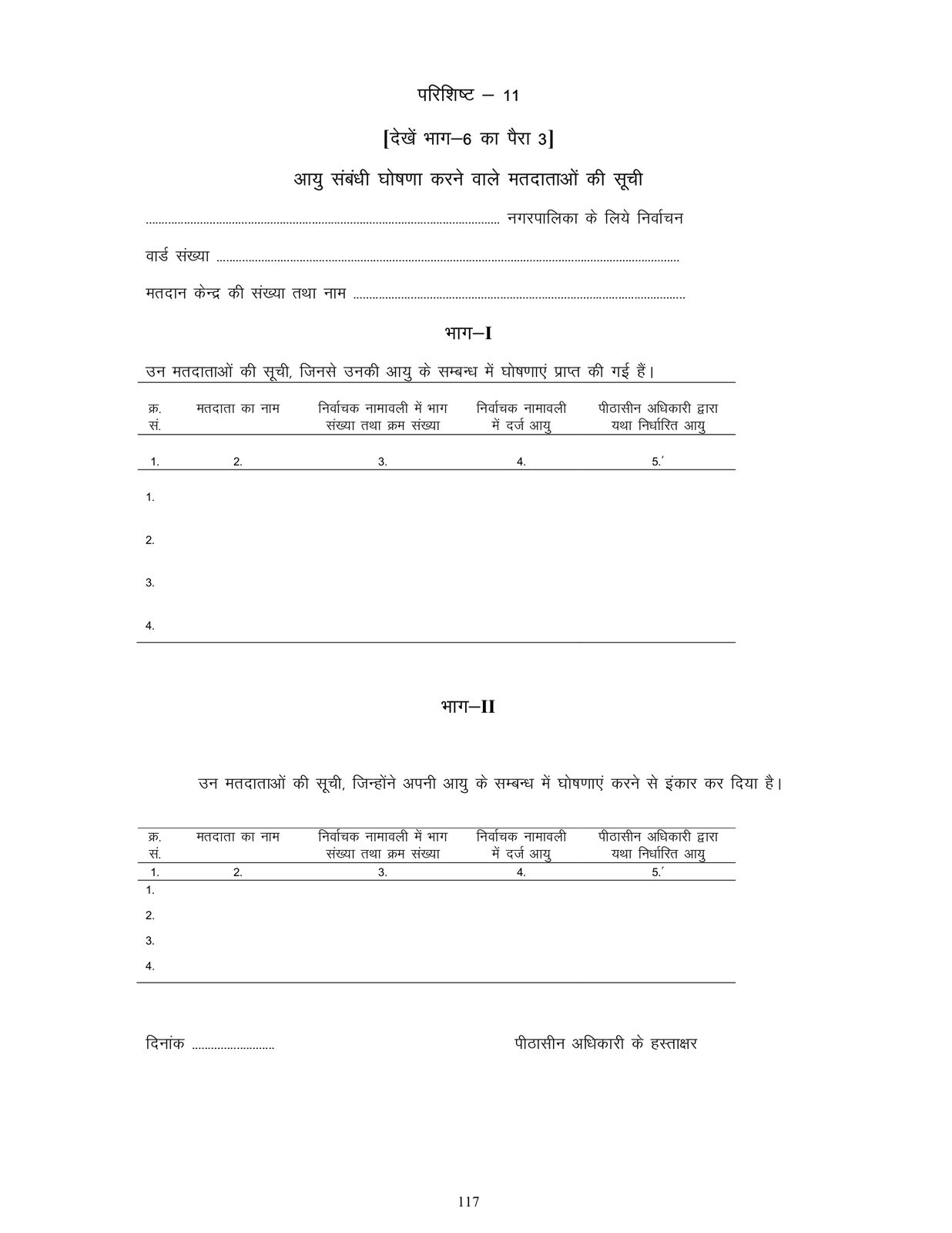

| परिशिष्ट-11 | आयु संबंधी घोषणा करने वाले मतदाताओं की सूची — list of such electors | 117 | pr117 | PRO |

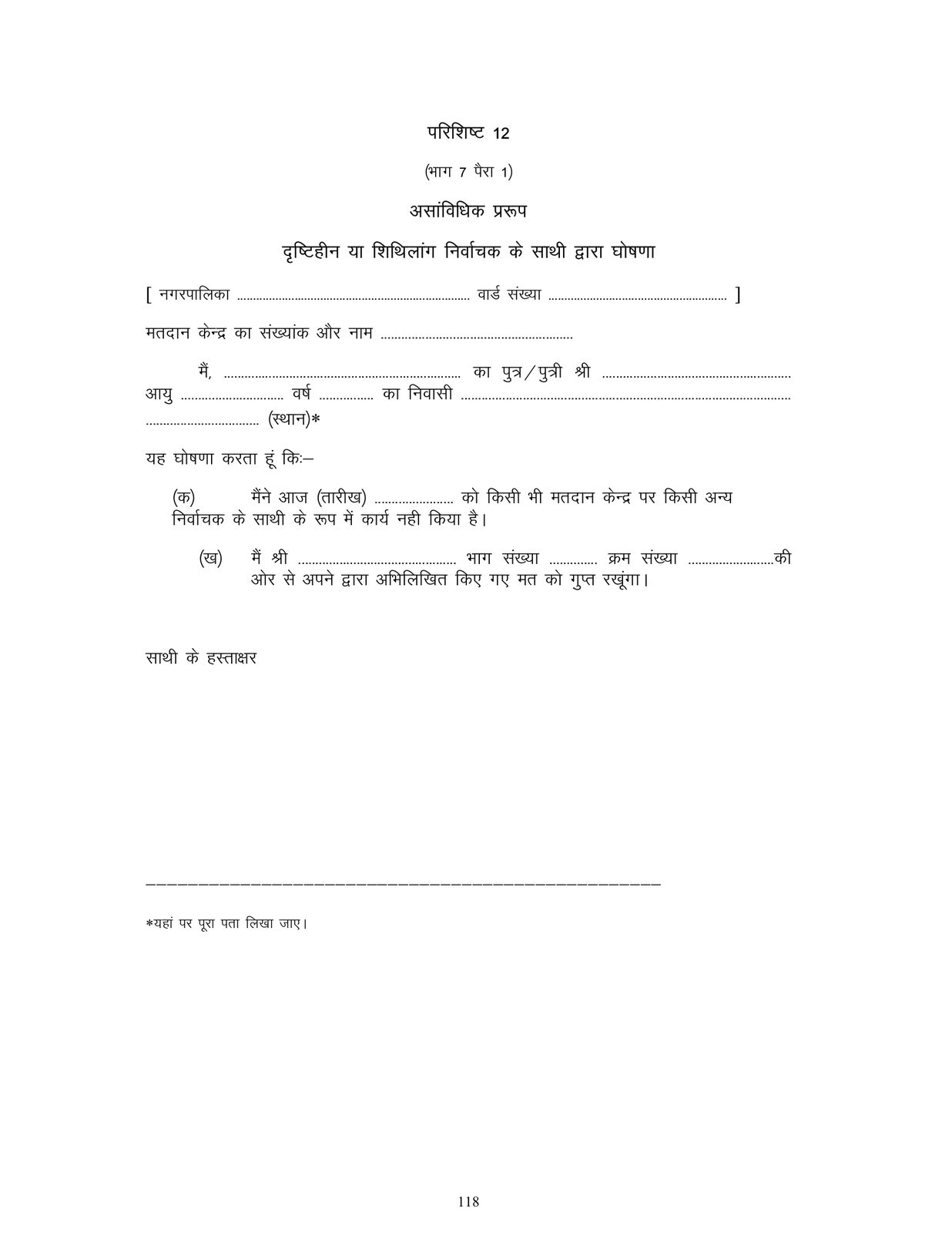

| परिशिष्ट-12 | दृष्टिहीन या शिथिलांग निर्वाचक के साथी द्वारा घोषणा (Part 7, para 1) — marked in the guide as an असांविधिक प्ररूप (non-statutory form); the statutory form is Form 12 under Rule 38-A | 118 | pr118 | PO-2 §5.2; blind/infirm voters |
| परिशिष्ट-13 | चैलेंज फीस रसीद बुक — प्ररूप (Part 6, para 2.1) | 119 | pr119 | PRO — challenged votes |

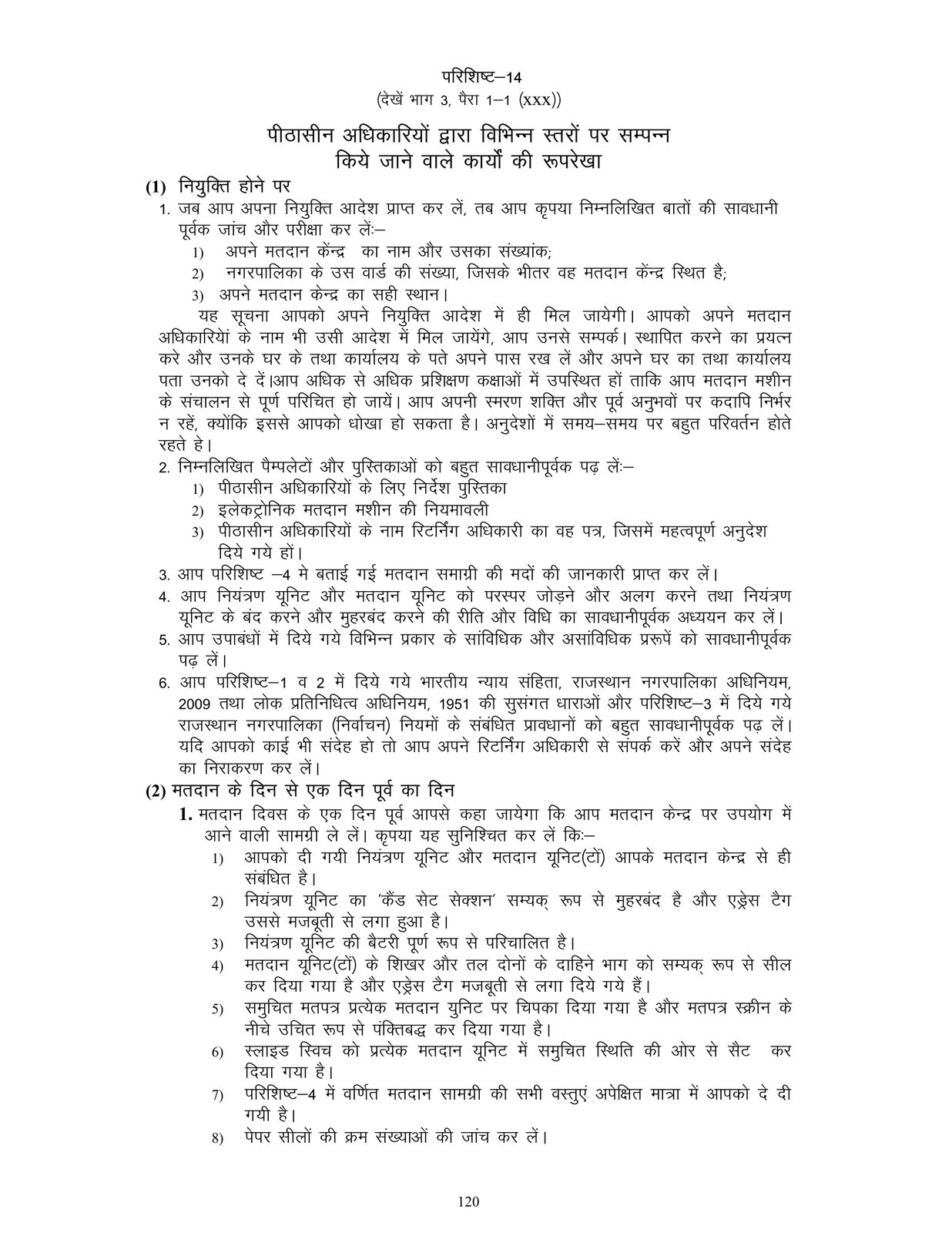

| परिशिष्ट-14 | पीठासीन अधिकारियों द्वारा विभिन्न स्तरों पर सम्पन्न किये जाने वाले कार्यों की रूपरेखा — outline of the PRO's tasks stage by stage (Part 3, para 1-1(xxx)) | 120–122 | pr120 | PRO — master task list |
| परिशिष्ट-15 | पीठासीन अधिकारियों के लिए चेक मेमो — Check Memo (Part 3, para 1-1(xxix)) | 123 | pr123 | PRO — pre-poll check |
| परिशिष्ट-15A | लिफाफों का विवरण — the list of envelopes prepared booth-wise for the polling party | 124 | pr124 | PRO §6 — close of poll packing |

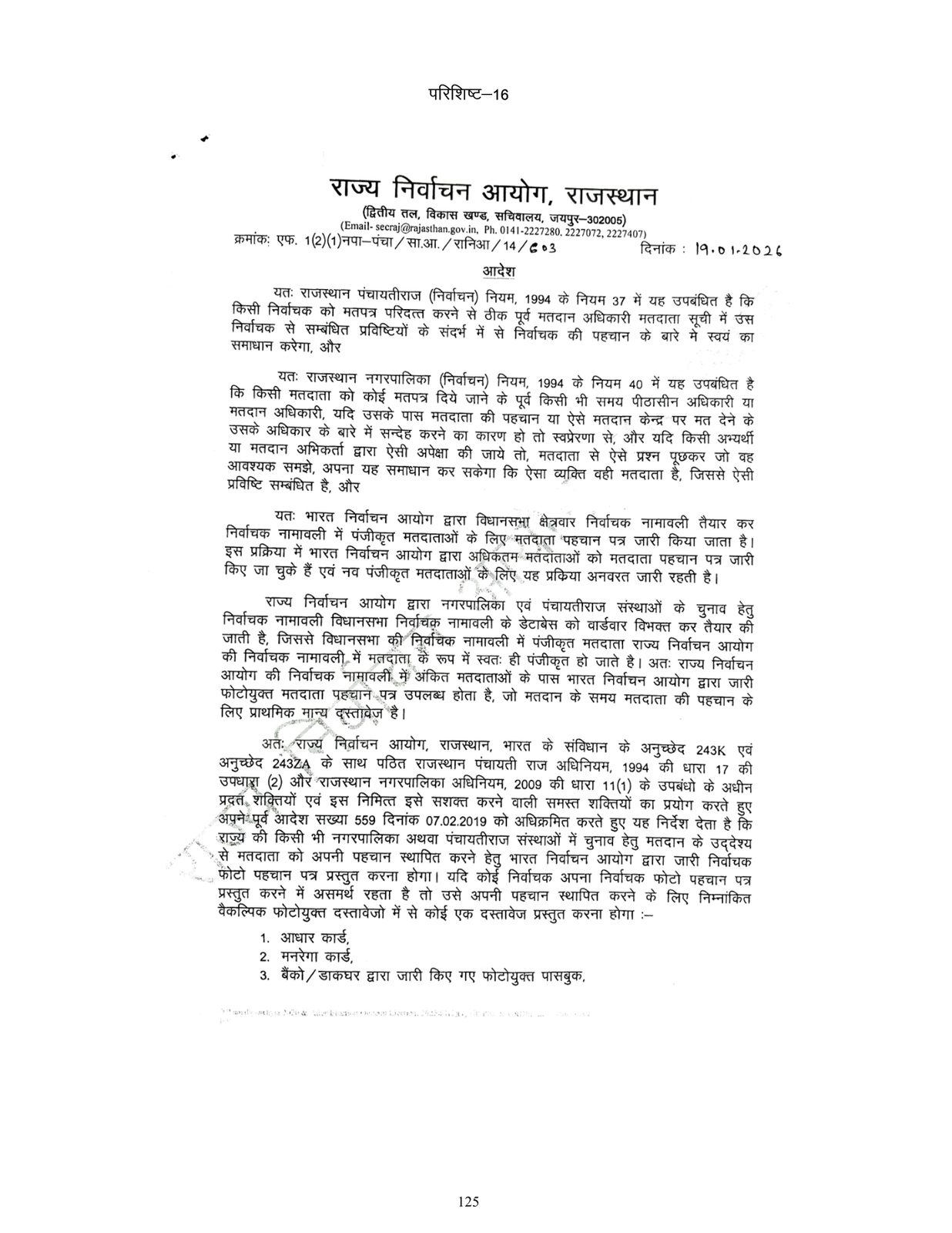

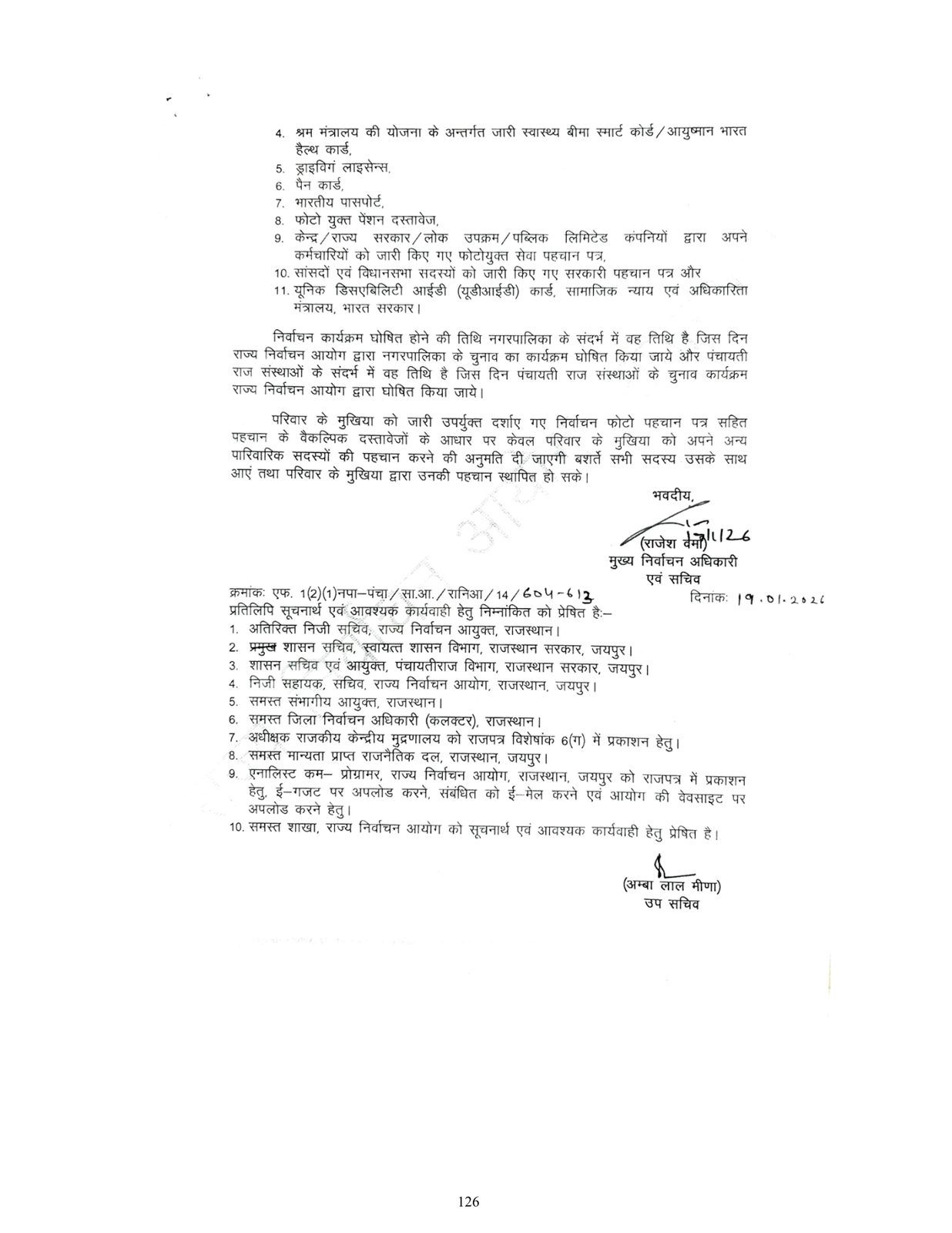

| परिशिष्ट-16 | मतदाता की पहचान हेतु विहित फोटो दस्तावेजों संबंधी आदेश — the prescribed photo identity documents | 125–126 | pr125 · pr126 | PO-1 §5.1 — identification |

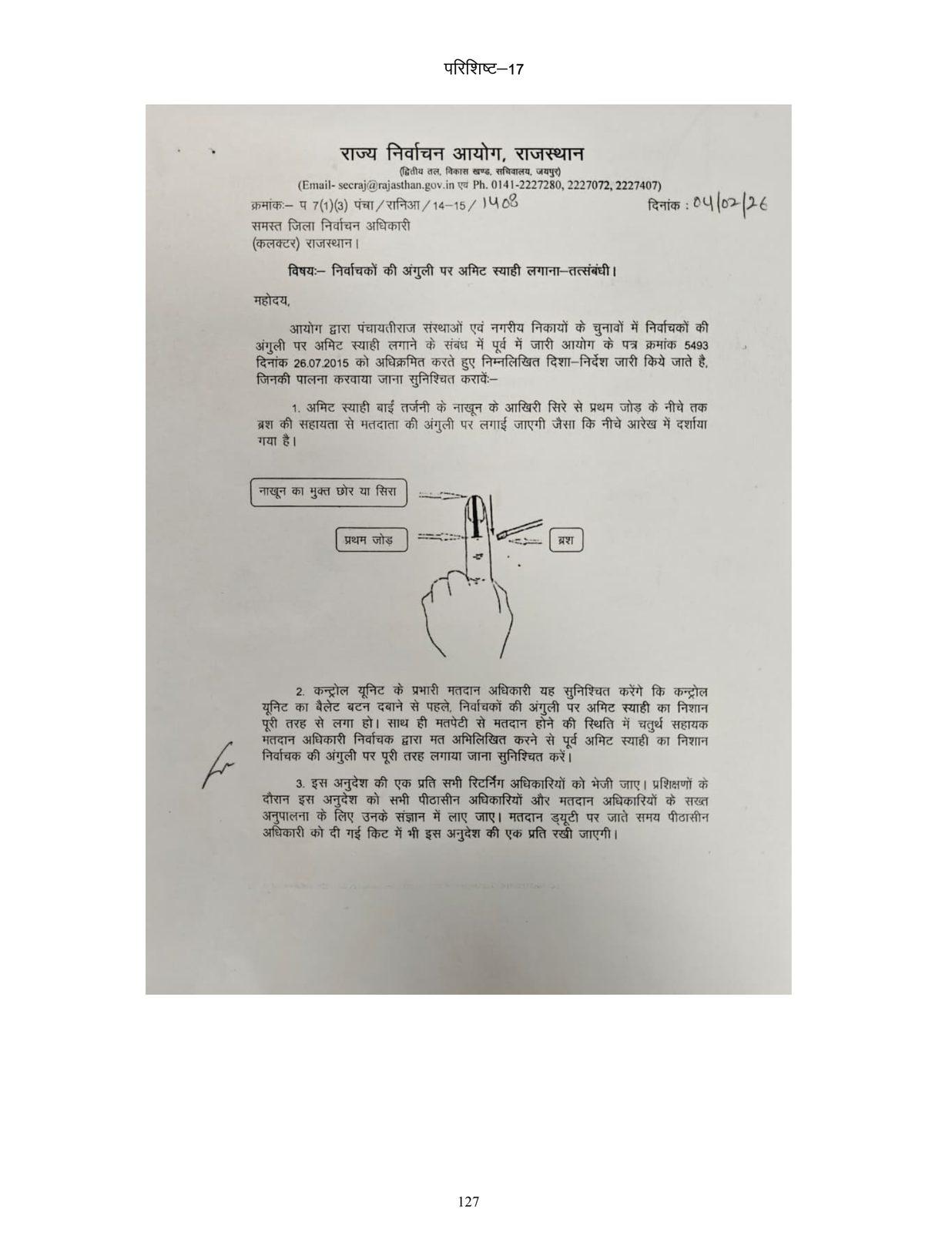

| परिशिष्ट-17 | SEC order 1408 dt 04.02.2026 — how indelible ink is applied (not an ECI order — corrected 23.08.2026) | 127–128 | pr127 · pr128 | PO-2 §5.2 |

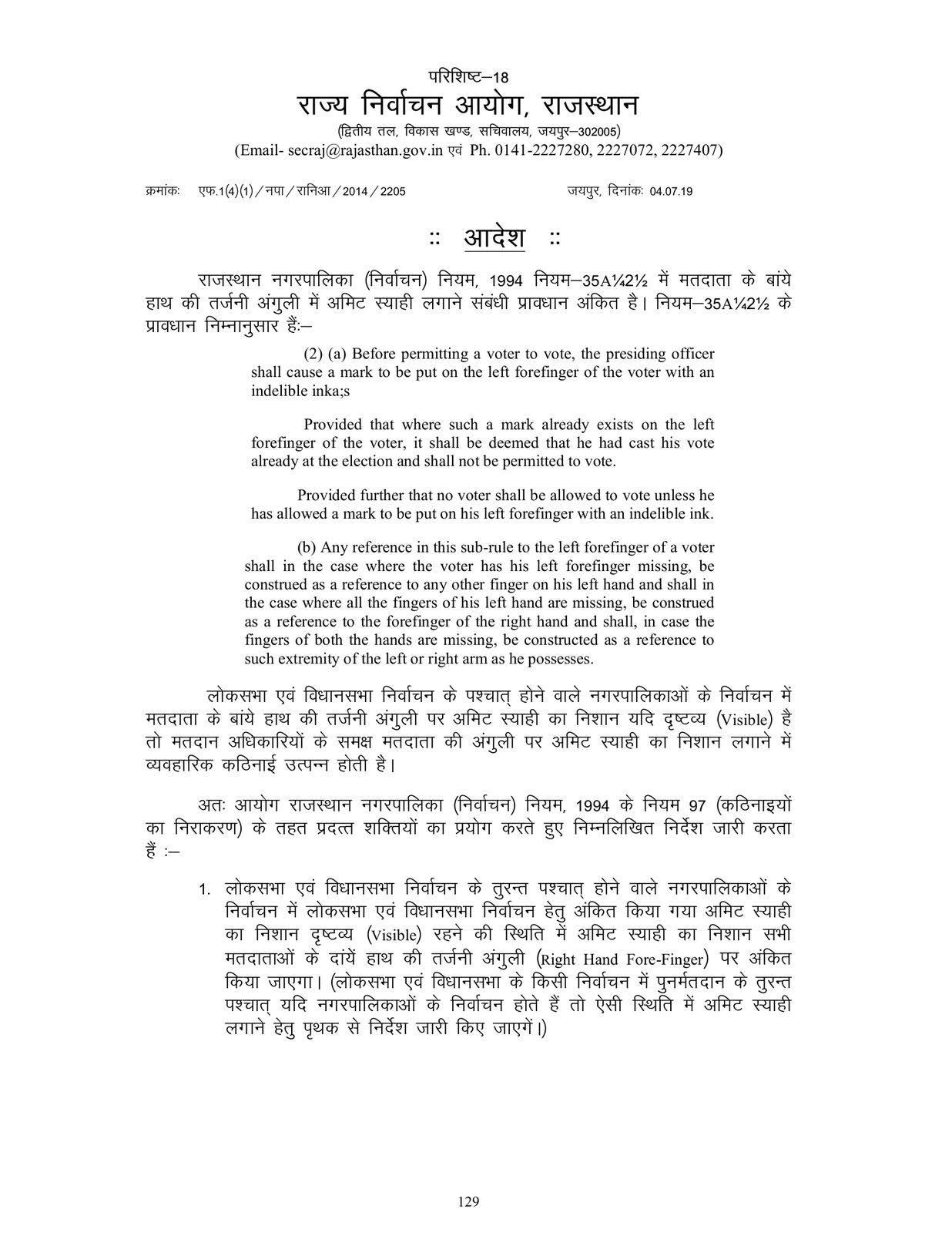

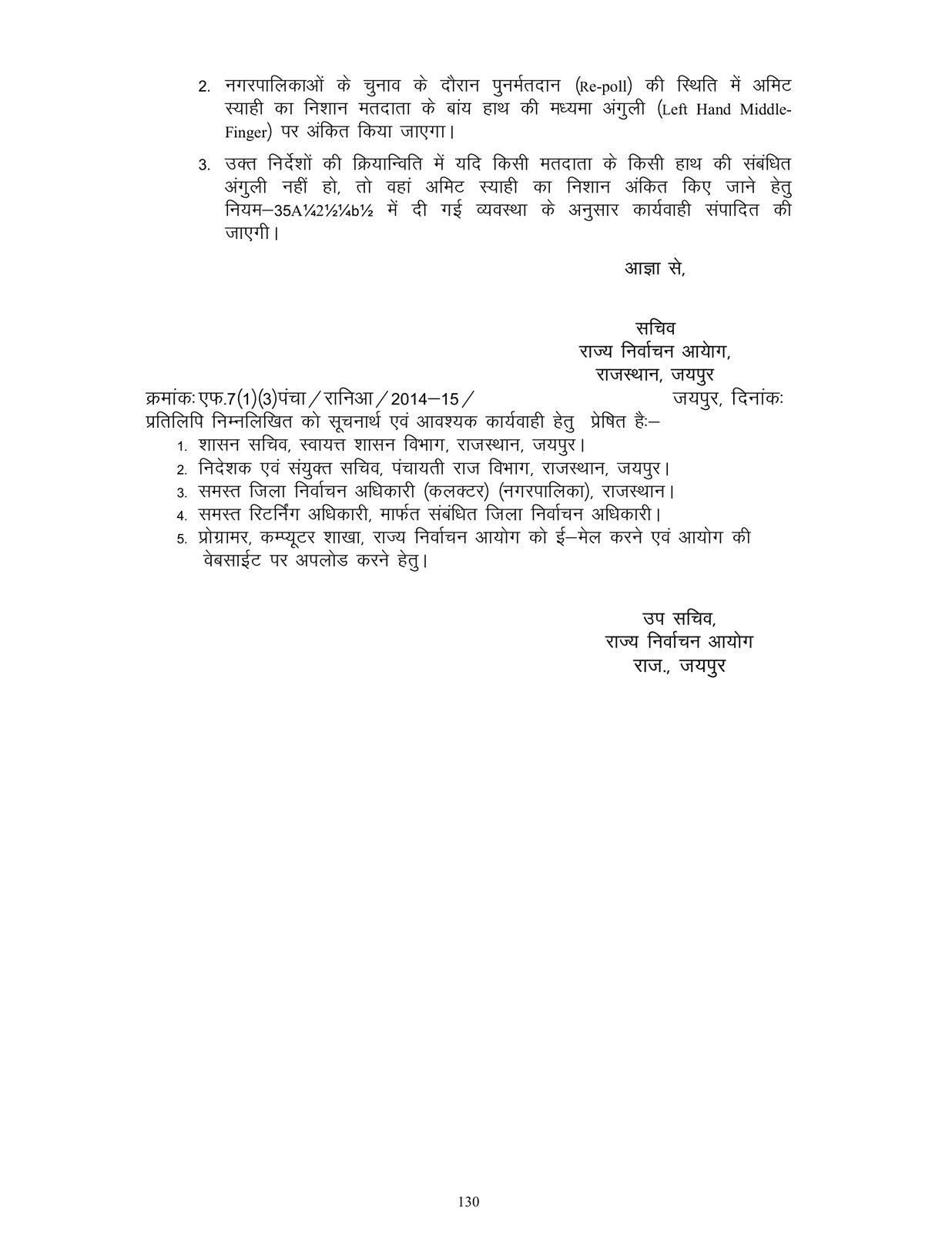

| परिशिष्ट-18 | SEC order 2205 dated 04.07.2019 — in a re-poll, fresh ink at the root of the nail of the left middle finger | 129–130 | pr129 · pr130 | PO-2 §5.2 — re-poll |

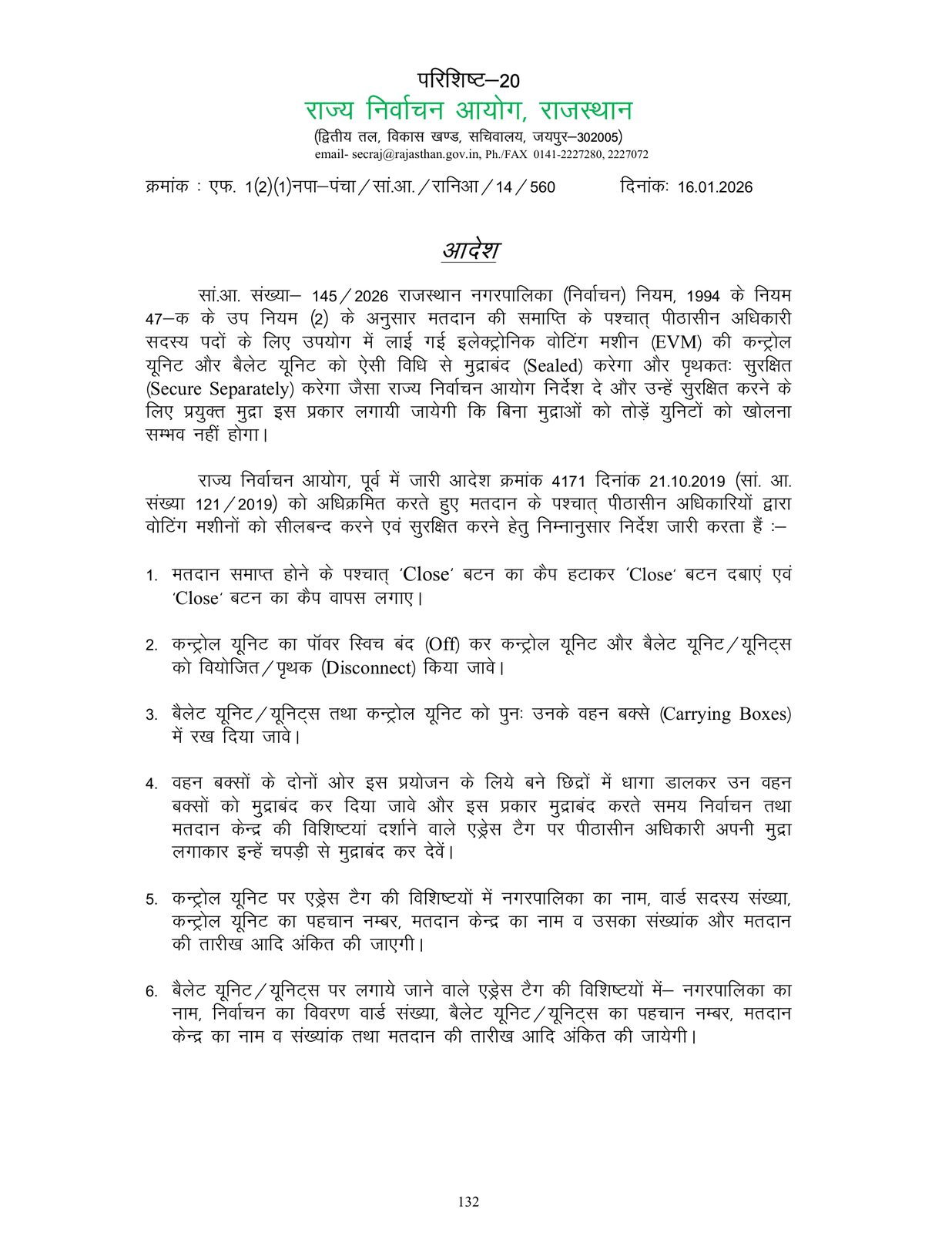

| परिशिष्ट-20 | SEC order (subject to be confirmed on reading) | 132–133 | pr132 | — |
The guide's own annexure list also names परिशिष्ट-1 to 5; only परिशिष्ट-4 has been separately identified so far. The remaining early annexures sit in the same extracted range (
MG_annex_pdf096…pdf113) and are not yet individually identified — do not cite them until they are.
3. Result forms — Order 1374 (सां.आ. 155/2026)
| Form | Rule | What it is | Image |
|---|---|---|---|

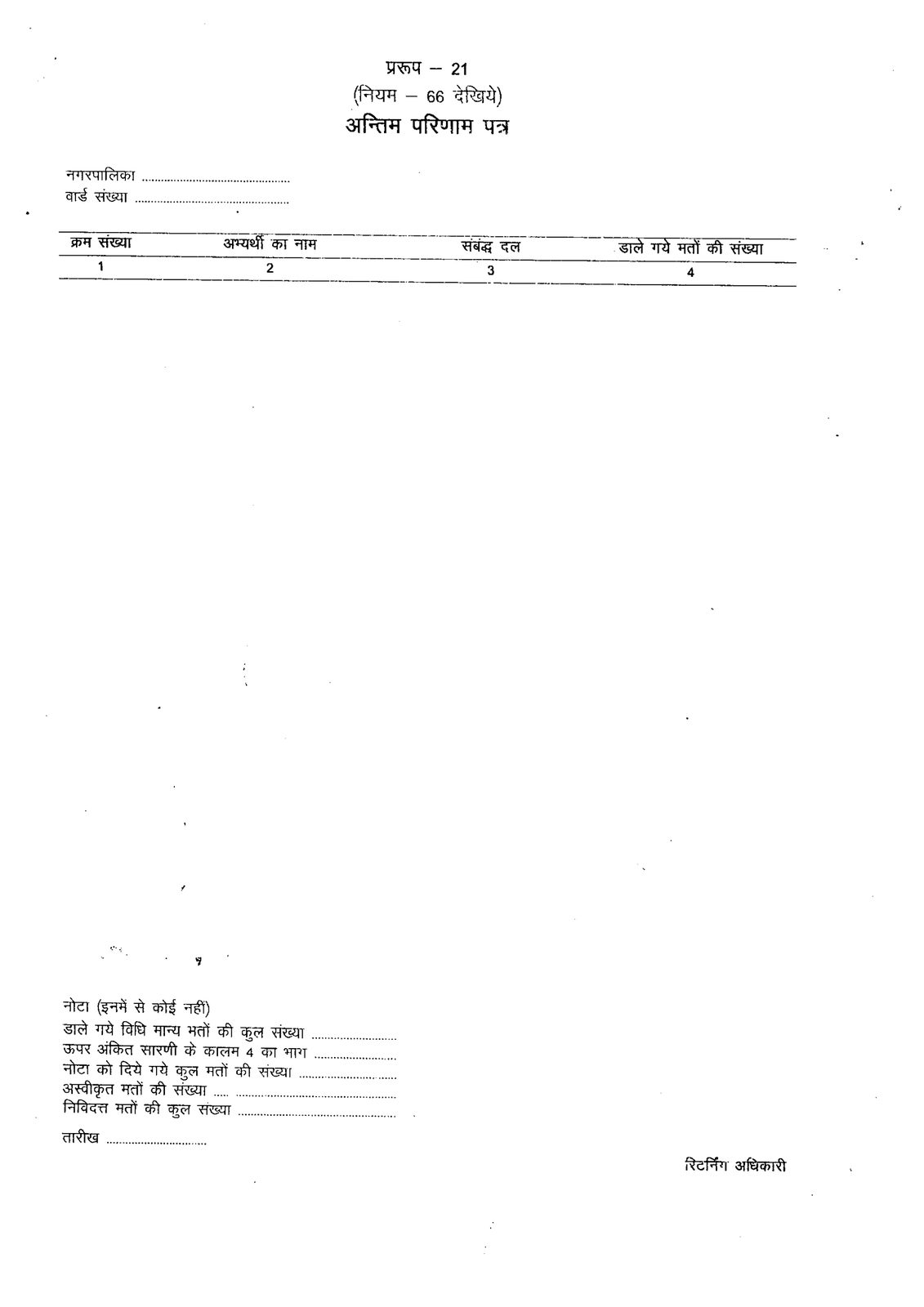

| प्ररूप 21 | नियम 66 | अन्तिम परिणाम पत्र (Final Result Sheet) — municipality · ward number · table of क्रम संख्या / अभ्यर्थी का नाम / संबद्ध दल / डाले गये मतों की संख्या · a नोटा (इनमें से कोई नहीं) line · total valid votes · total NOTA votes · अस्वीकृत मतों की संख्या · निविदत्त मतों की कुल संख्या · date · RO's signature | p2 |

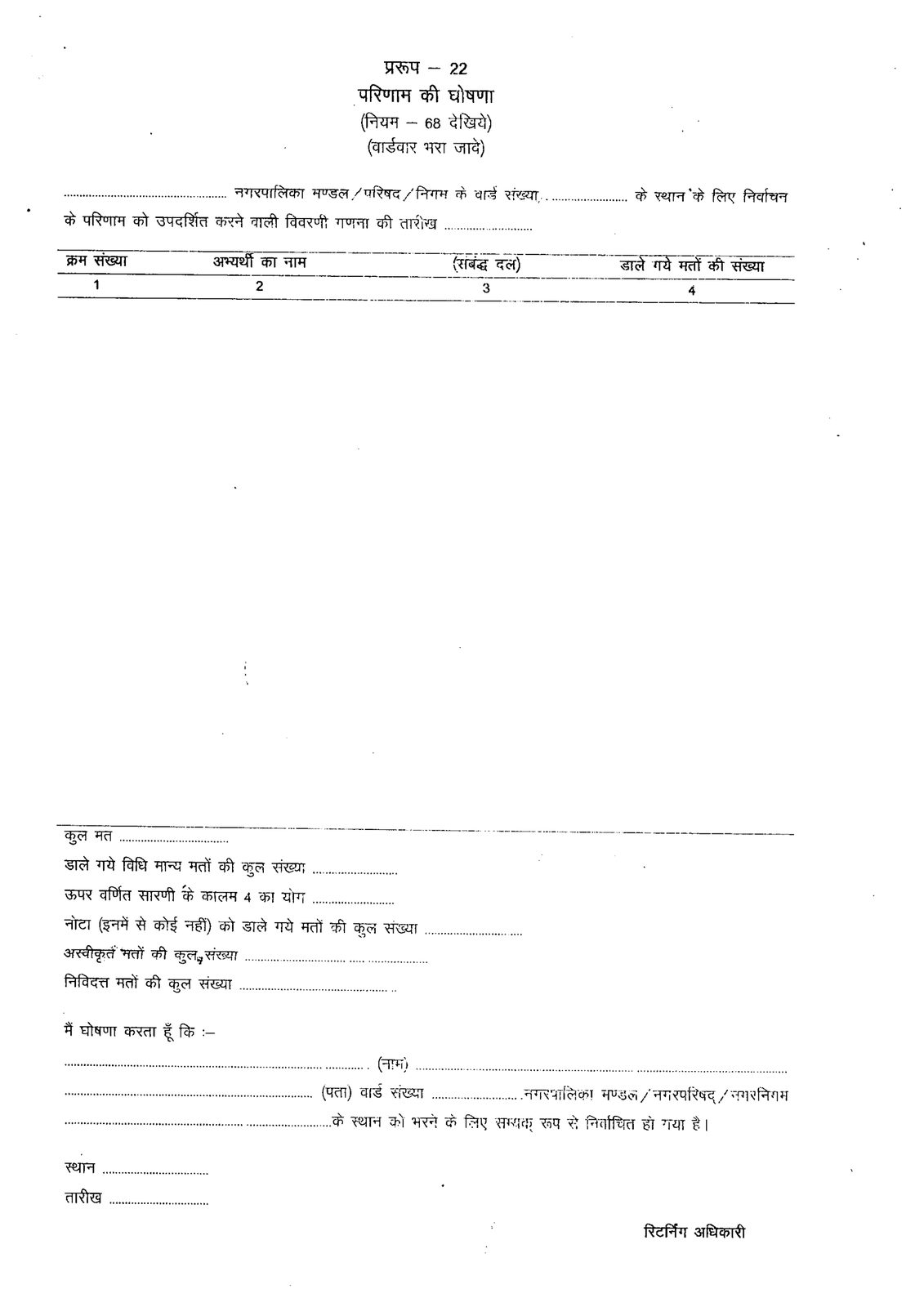

| प्ररूप 22 | — | परिणाम की घोषणा (Declaration of Result) | p3 |

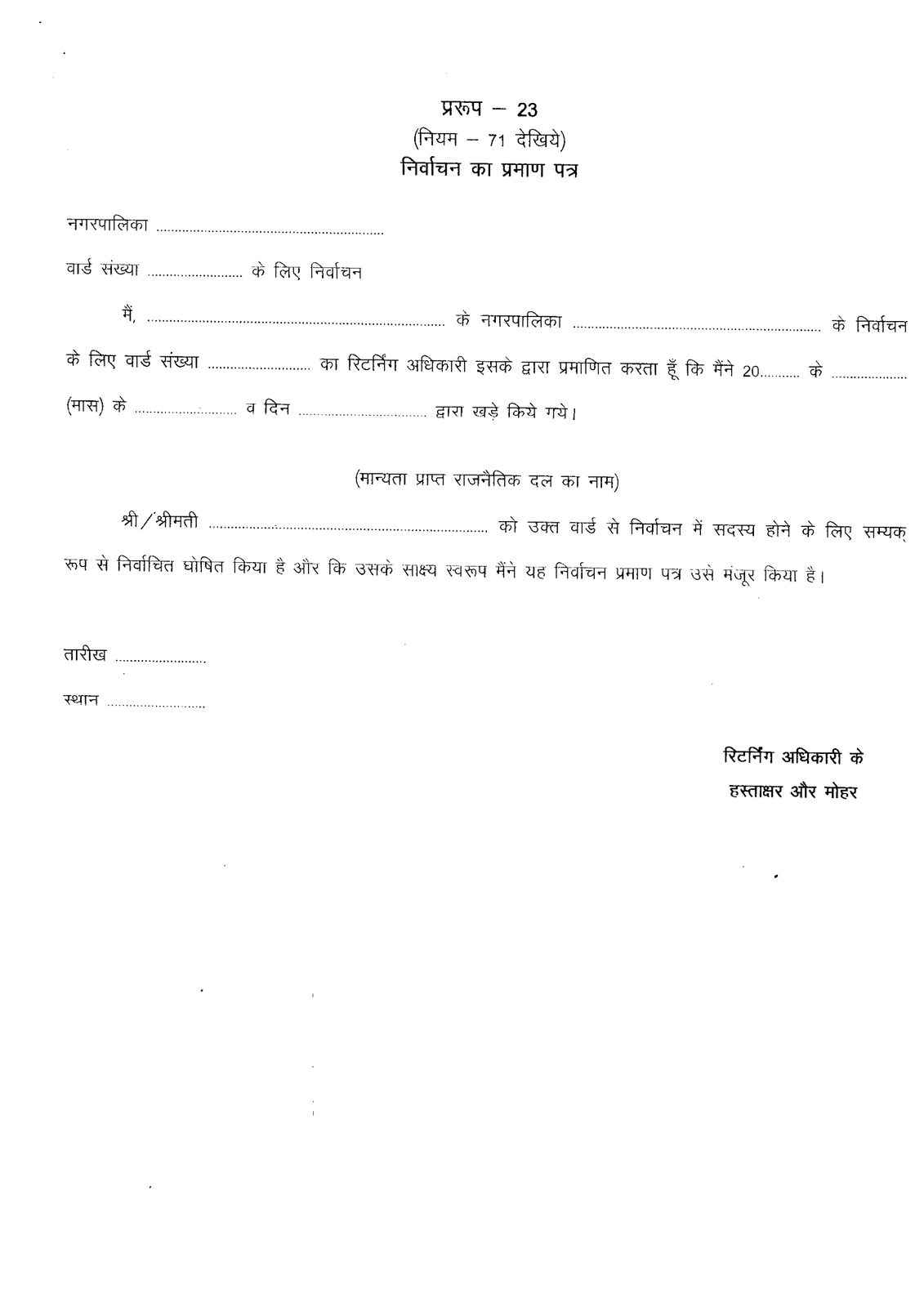

| प्ररूप 23 | — | निर्वाचन का प्रमाण पत्र (Certificate of Election) | p4 |
🚨 Cataloguing error worth knowing. Order 1374 dated 04.02.2026 is titled "सां.आ. 155/2026 — उपाध्यक्षीय पदों के परिणाम के सम्बन्ध में" on the SEC website and in the Compendium index (item 66). Its operative text — verified in two independent copies (the SEC page PDF and the Compendium's own copy at printed p 273) — is about सदस्य पदों (member posts), under Rule 72 read with Rule 68, requiring the RO to send result documents to the Commission within three days of declaration. Circular [2292 पैरा 28] cites it correctly for member results. The title is wrong in both catalogues; the text governs.
4. Circular 2184 annexures — the EVM paper trail
Images: p12 · p13 · p14 · p15 · p16 · p17 · p18
| Annexure | What it is | Stage |
|---|---|---|

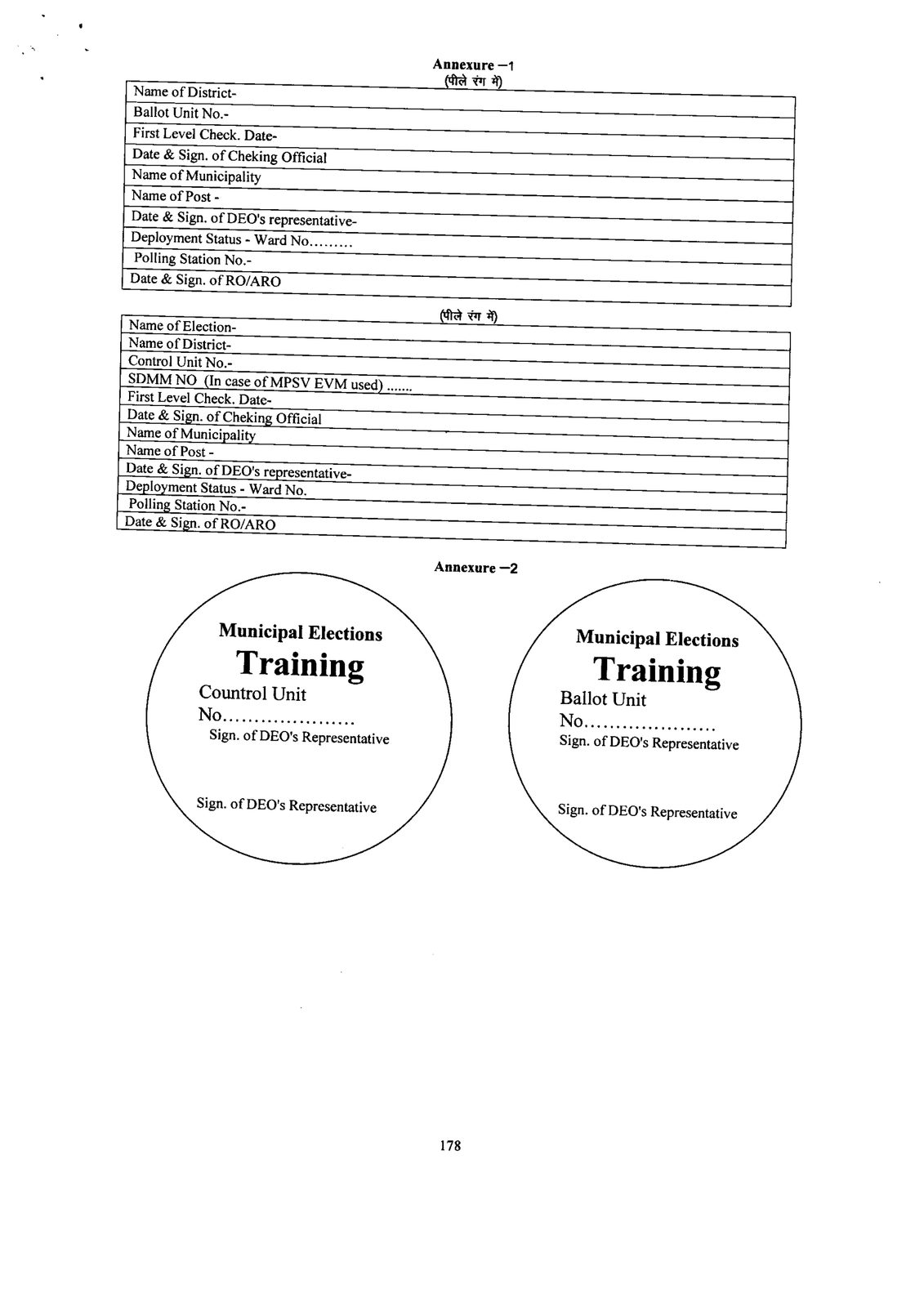

| Anx-1 | Yellow rectangular sticker for the back of CU and BU | after FLC |
| Anx-2 | Pink round sticker — “Municipal Elections Training” | training machines |

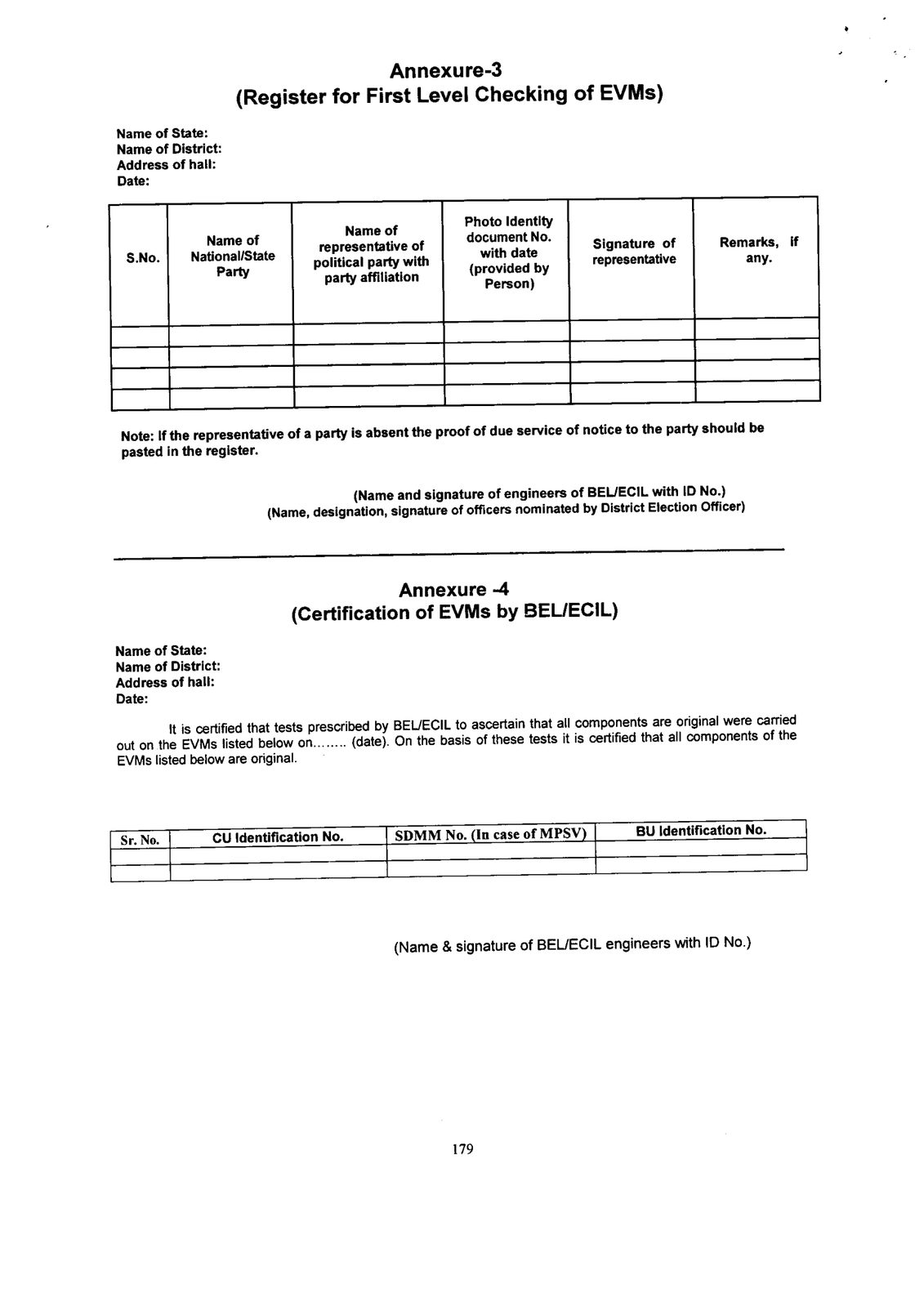

| Anx-3 | Register for First Level Checking (party representatives) | FLC |
| Anx-4 | BEL/ECIL certification that all components are Original | FLC |

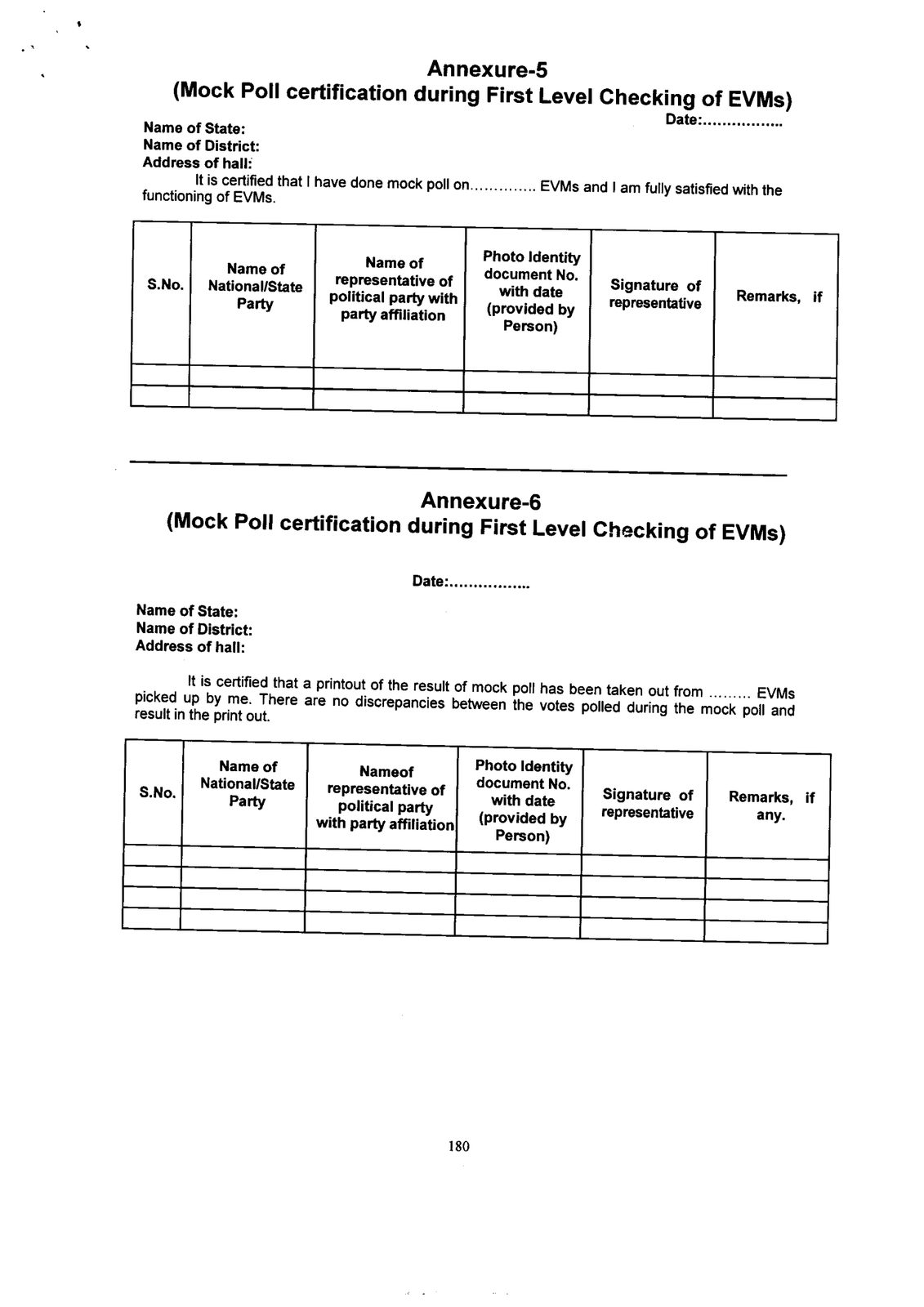

| Anx-5 / Anx-6 | Mock poll certification / result printout certification during FLC | FLC |

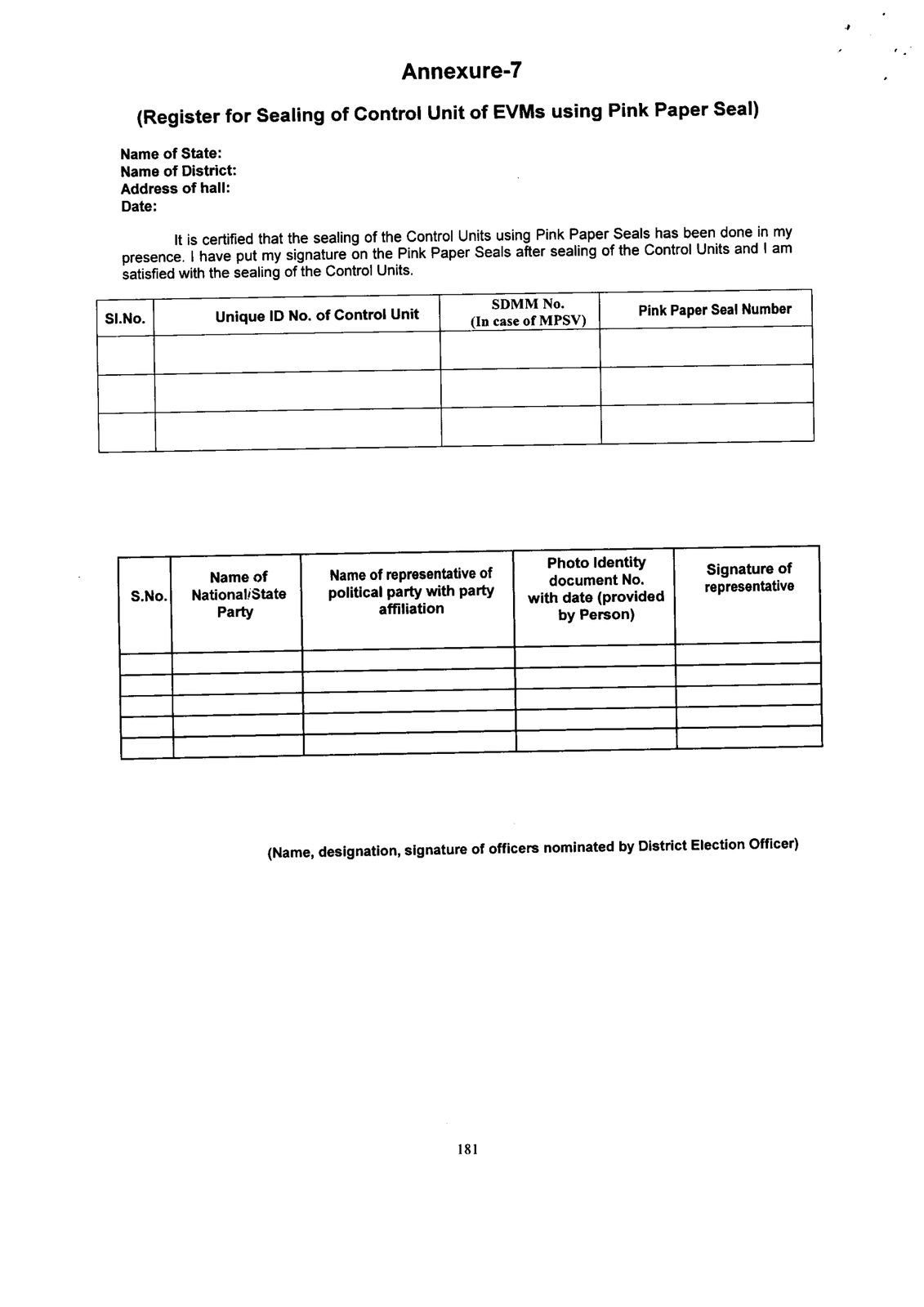

| Anx-7 | Register for sealing the Control Unit with the Pink Paper Seal | FLC |
| Anx-8 | Register during Commissioning | commissioning |

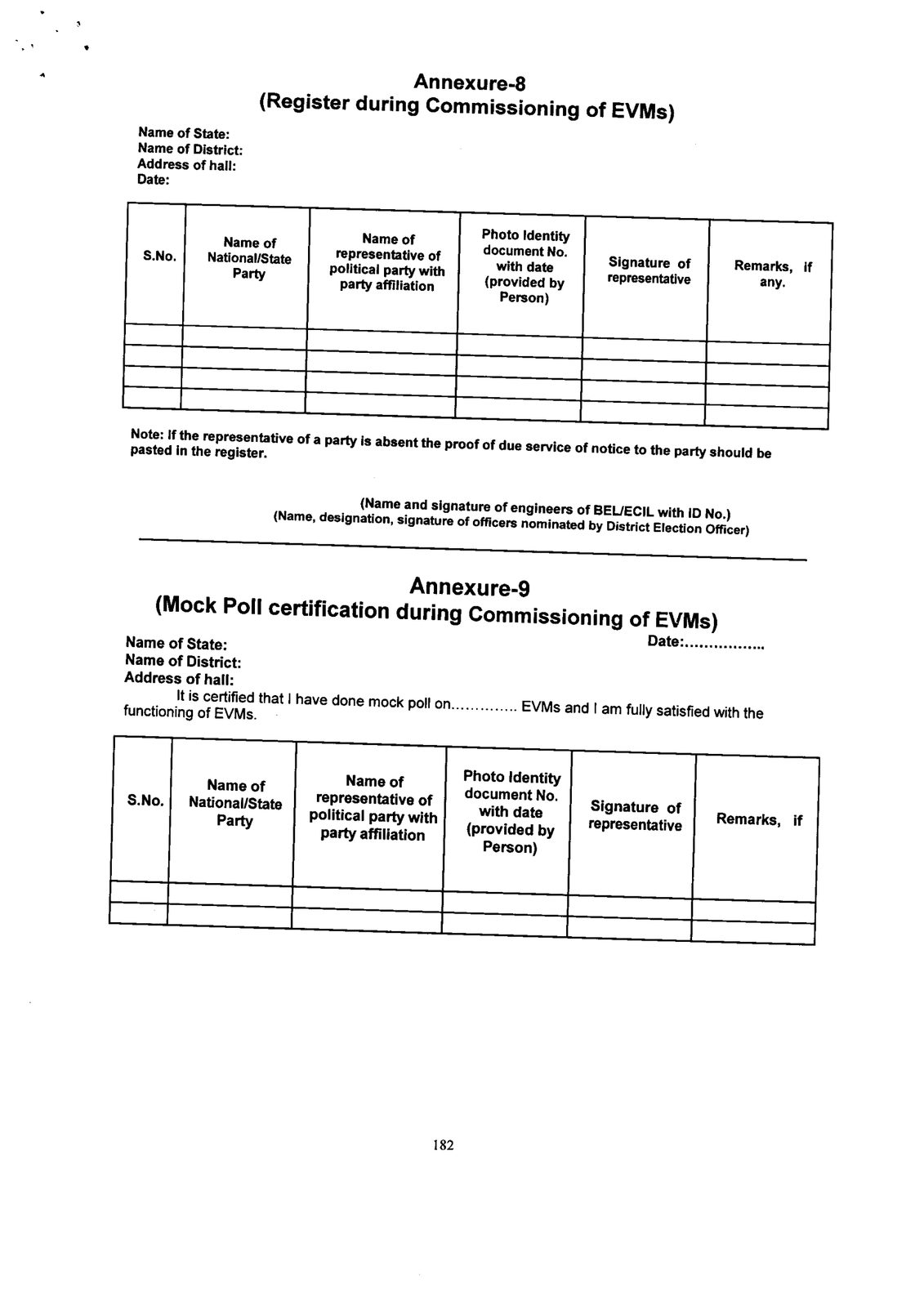

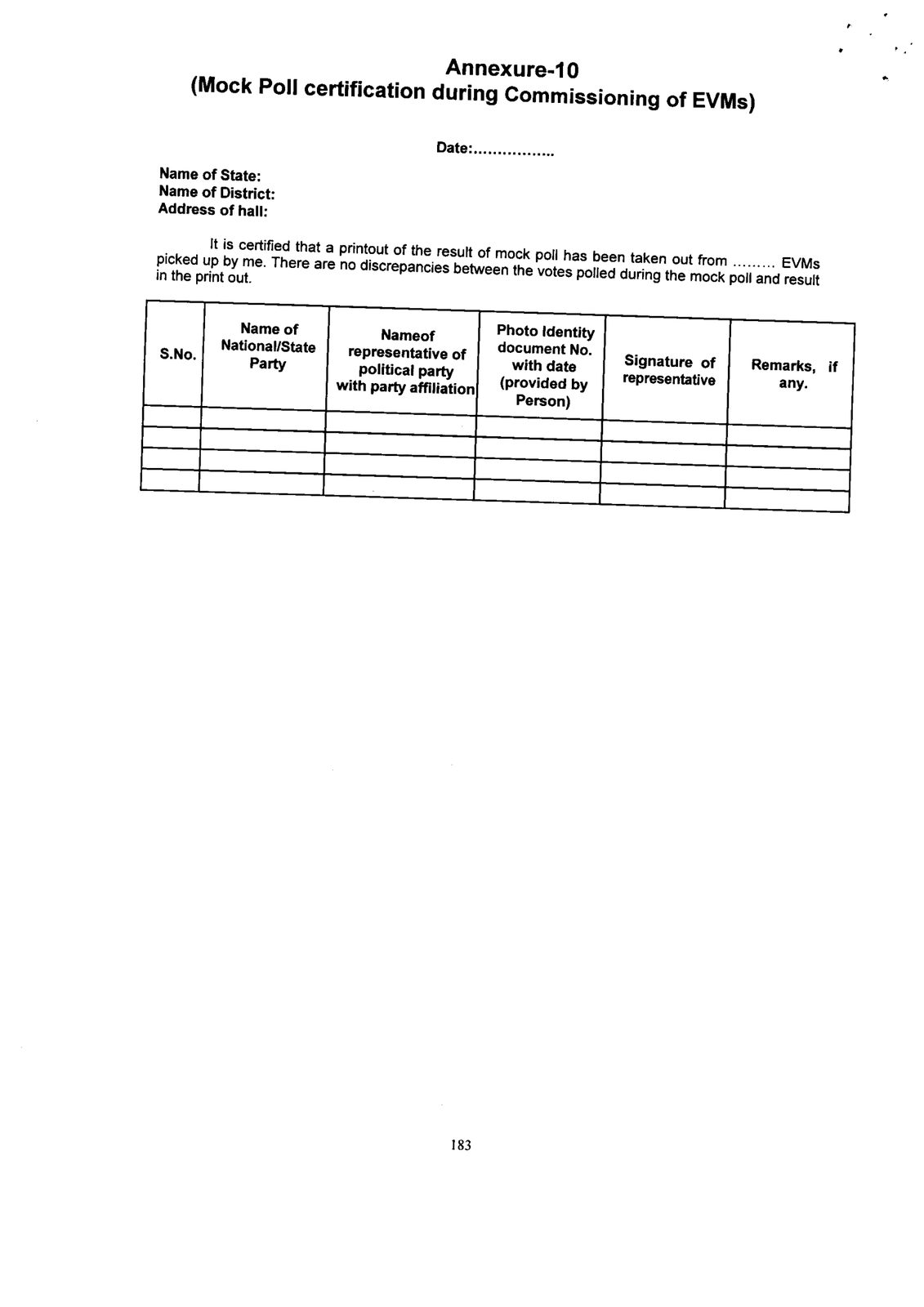

| Anx-9 / Anx-10 | Mock poll certification / result printout certification at commissioning | commissioning |

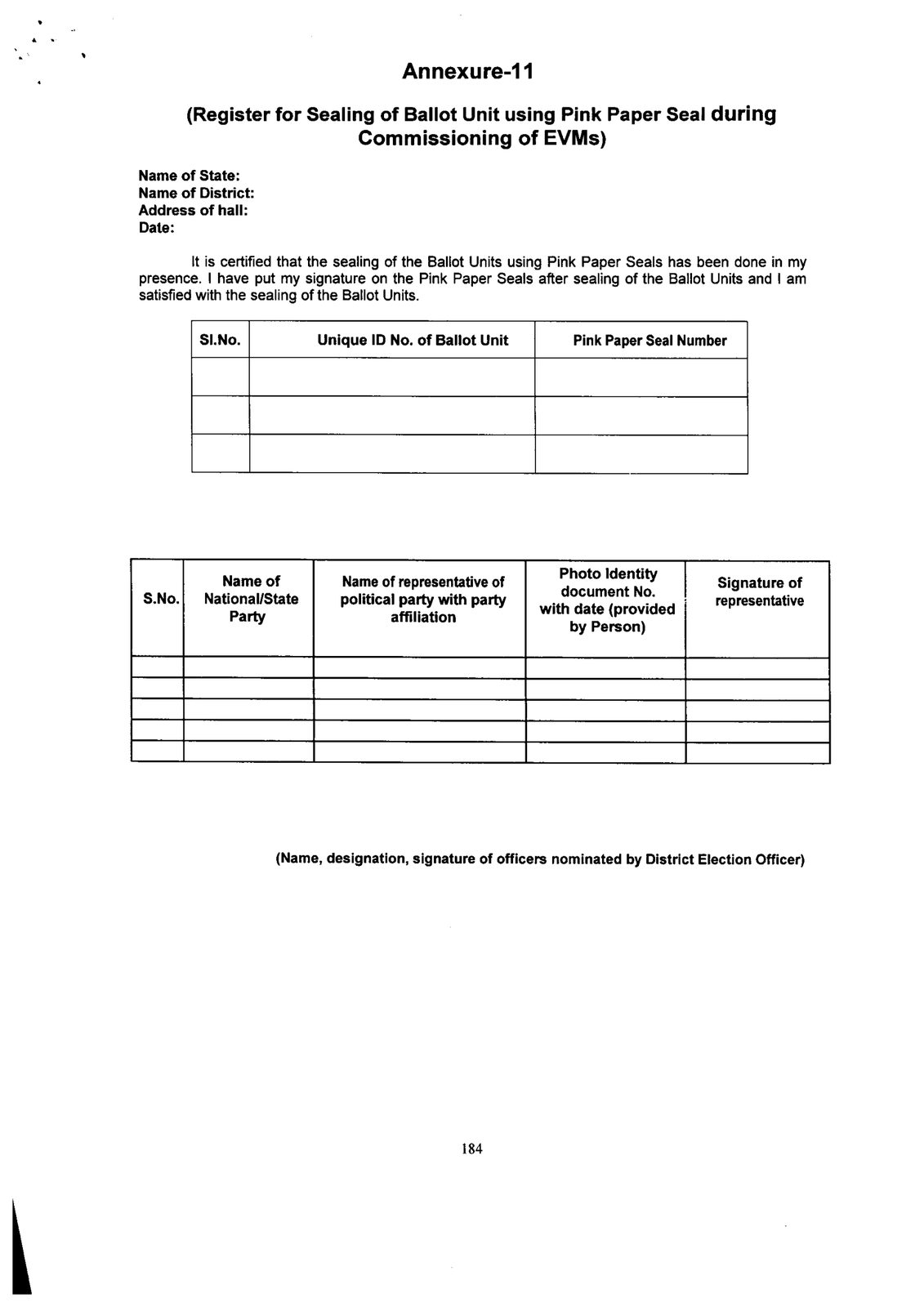

| Anx-11 | Register for sealing the Ballot Unit with the Pink Paper Seal | commissioning |
(Full column lists are in the RO/ARO handbook §13.)
5. Machine figures — ECIL MPSV manual
27 rendered pages in figures/MPSV/. Use these when teaching the physical steps.
| Figure | Shows | Page image | Handbook step |
|---|---|---|---|

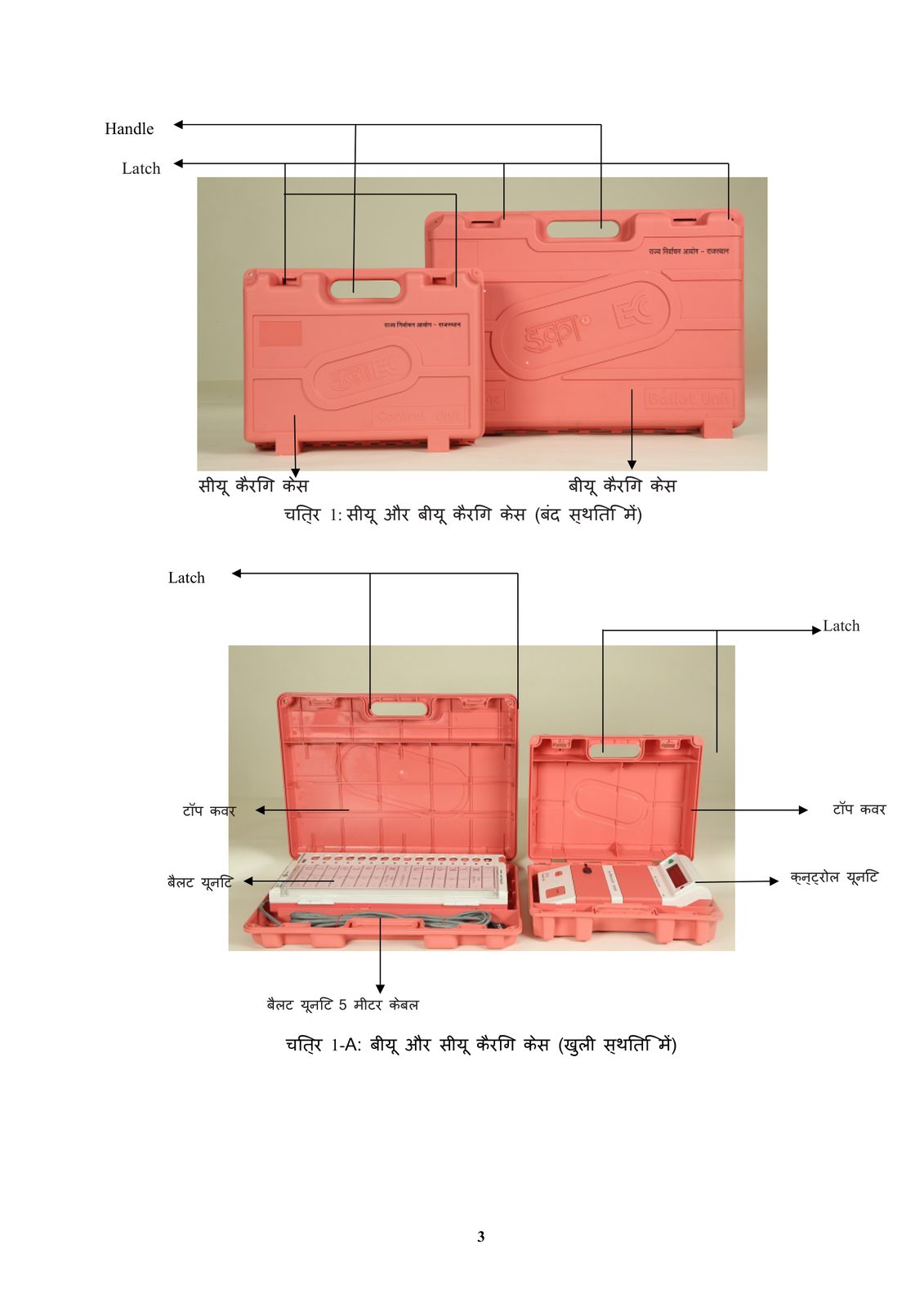

| चित्र 1 / 1-A | CU and BU carrying cases, closed and open | page_03 | PRO §2 |

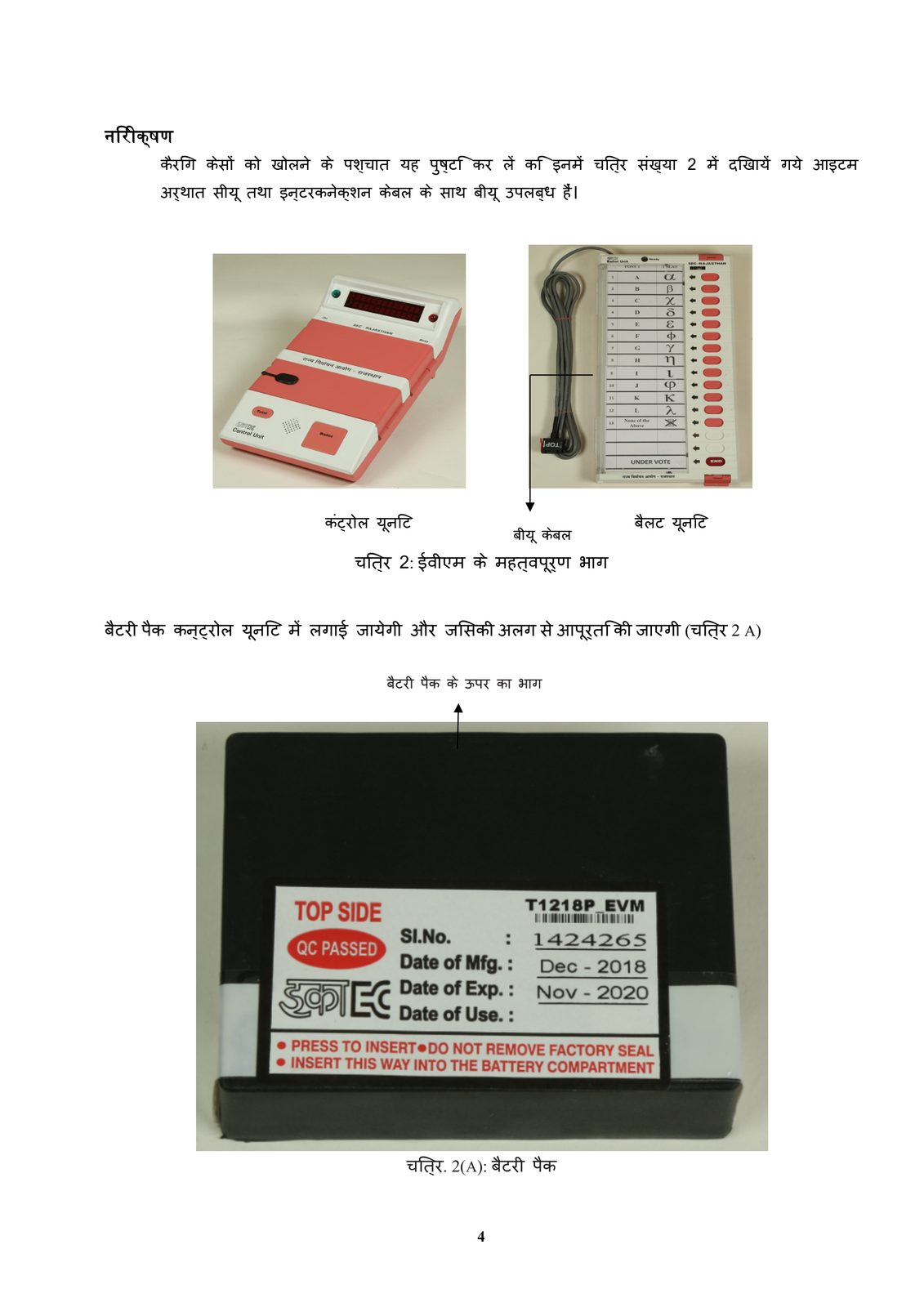

| चित्र 2 / 2(A) | Important parts of the EVM; the battery pack | page_04 | RO §8.4 |

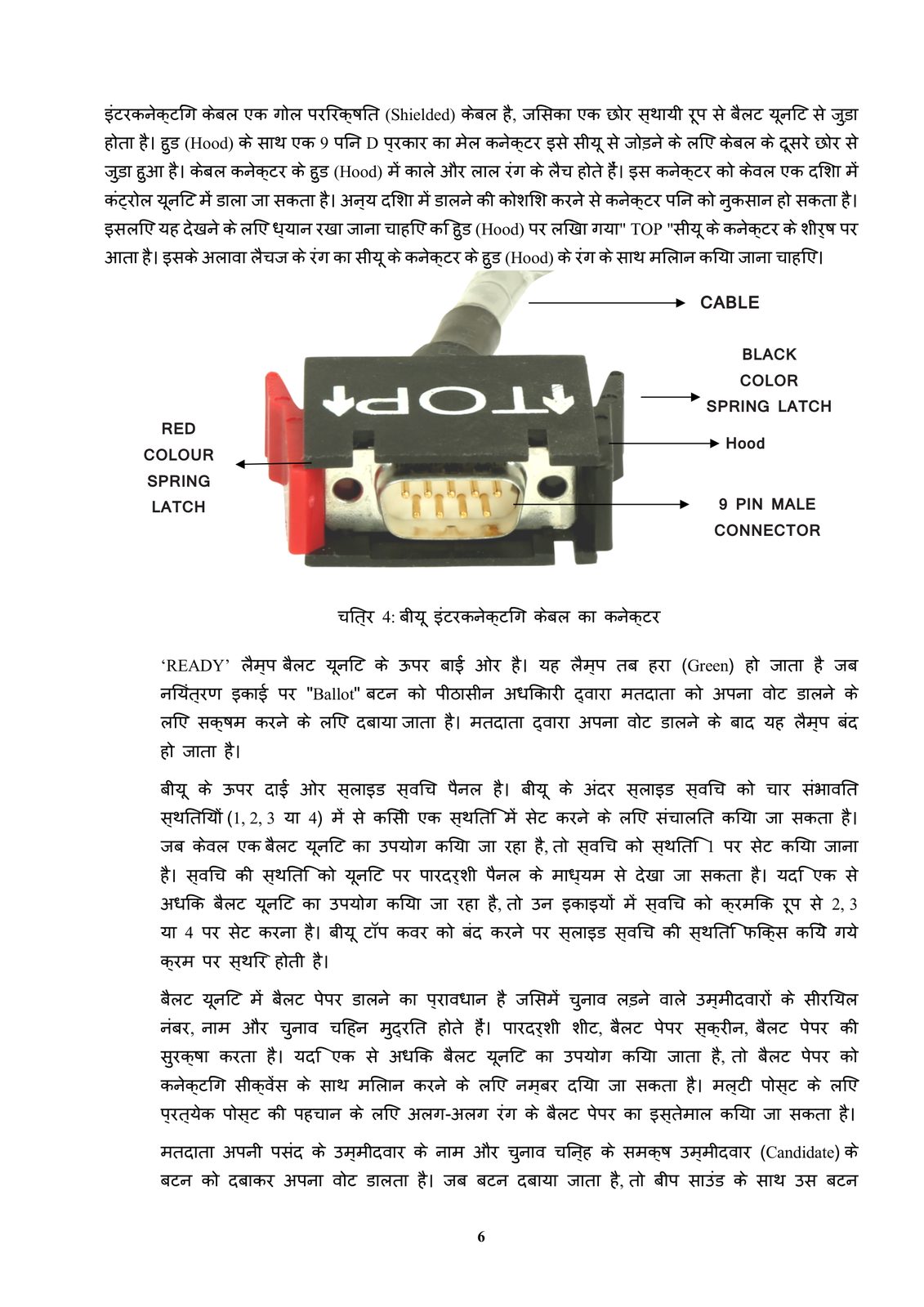

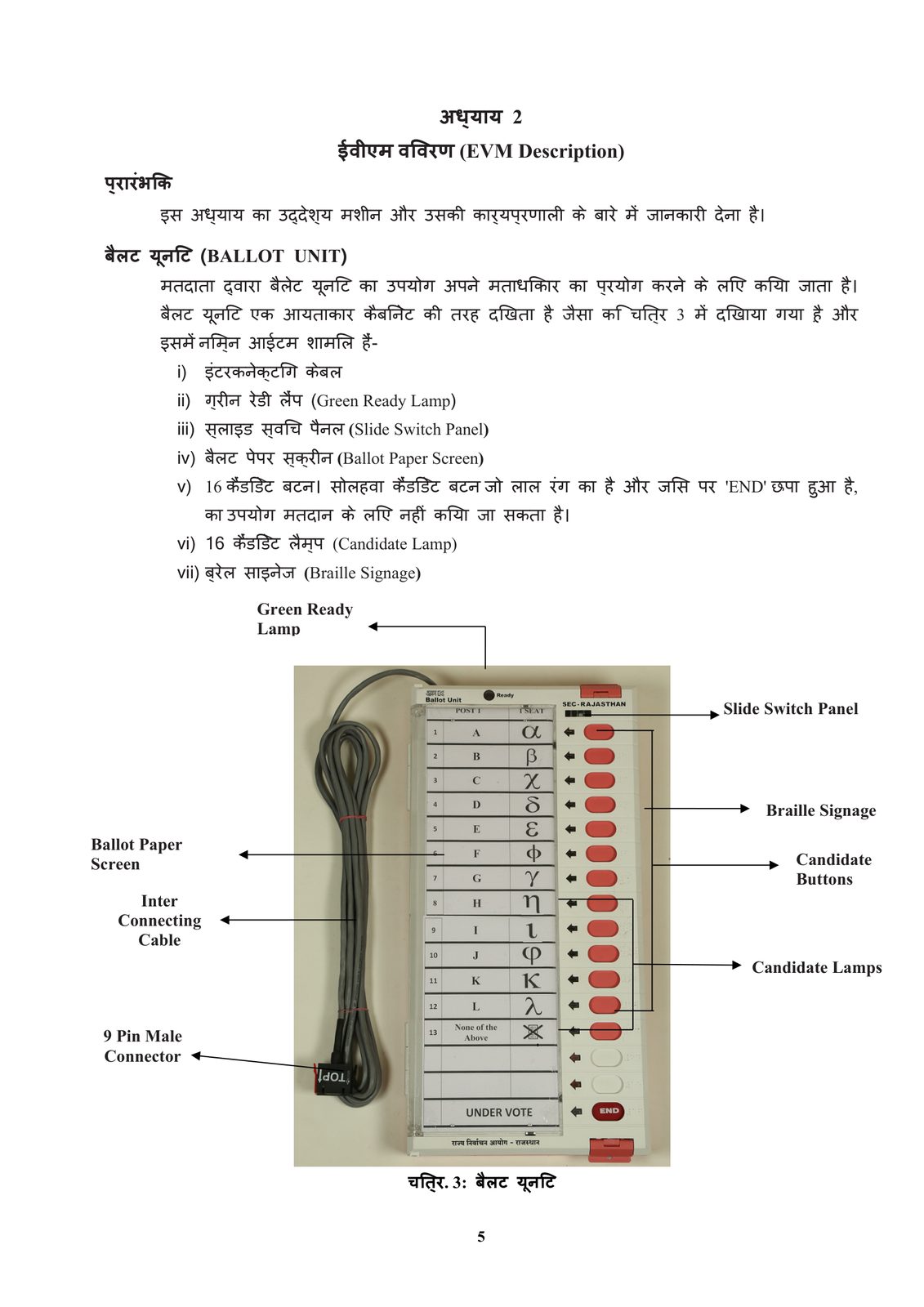

| चित्र 3 / 4 | Ballot Unit; BU interconnecting-cable connector | page_05 · page_06 | RO §8.5 |

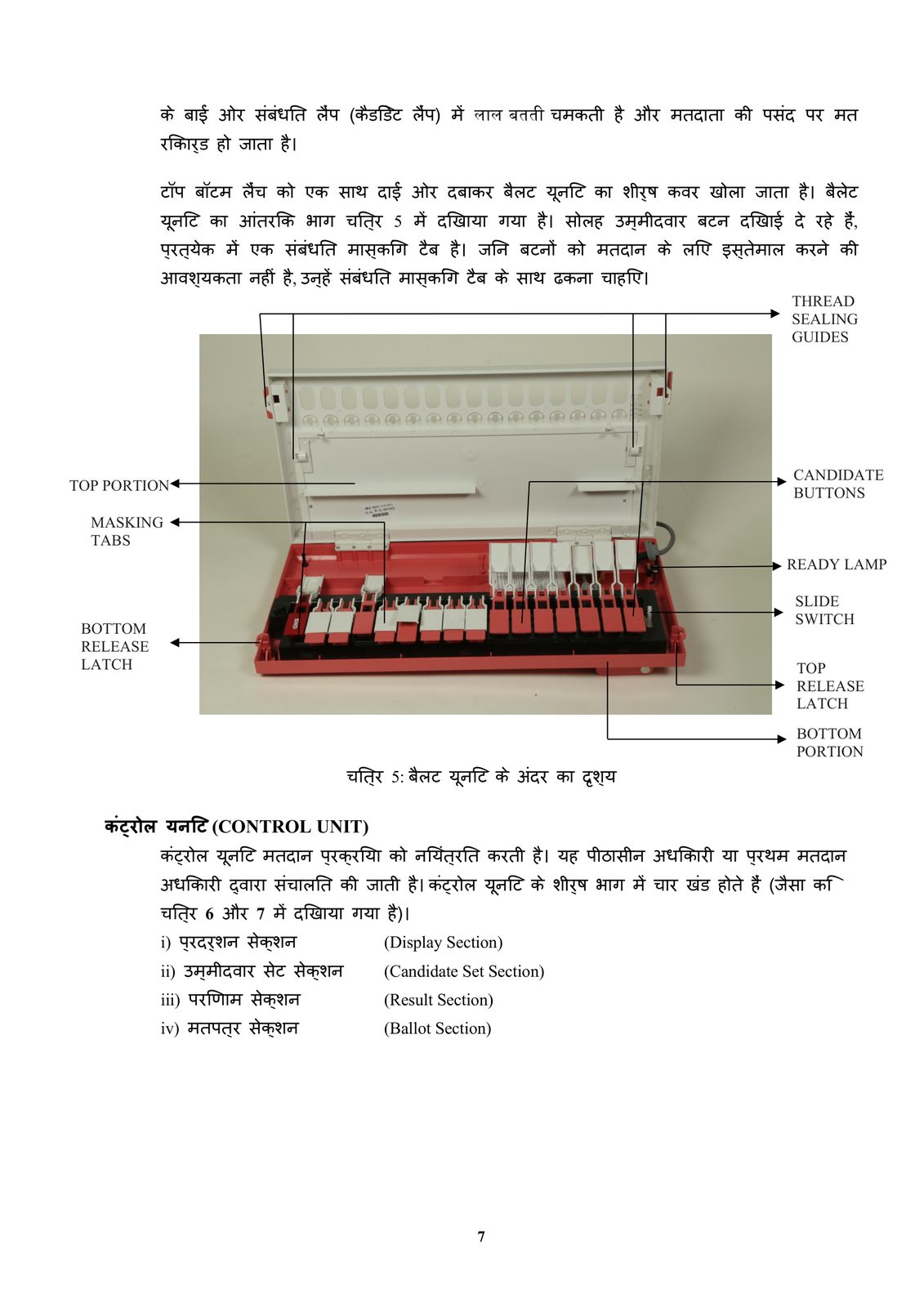

| चित्र 5 | Inside view of the Ballot Unit (candidate buttons) | page_07 | RO §8.4 |

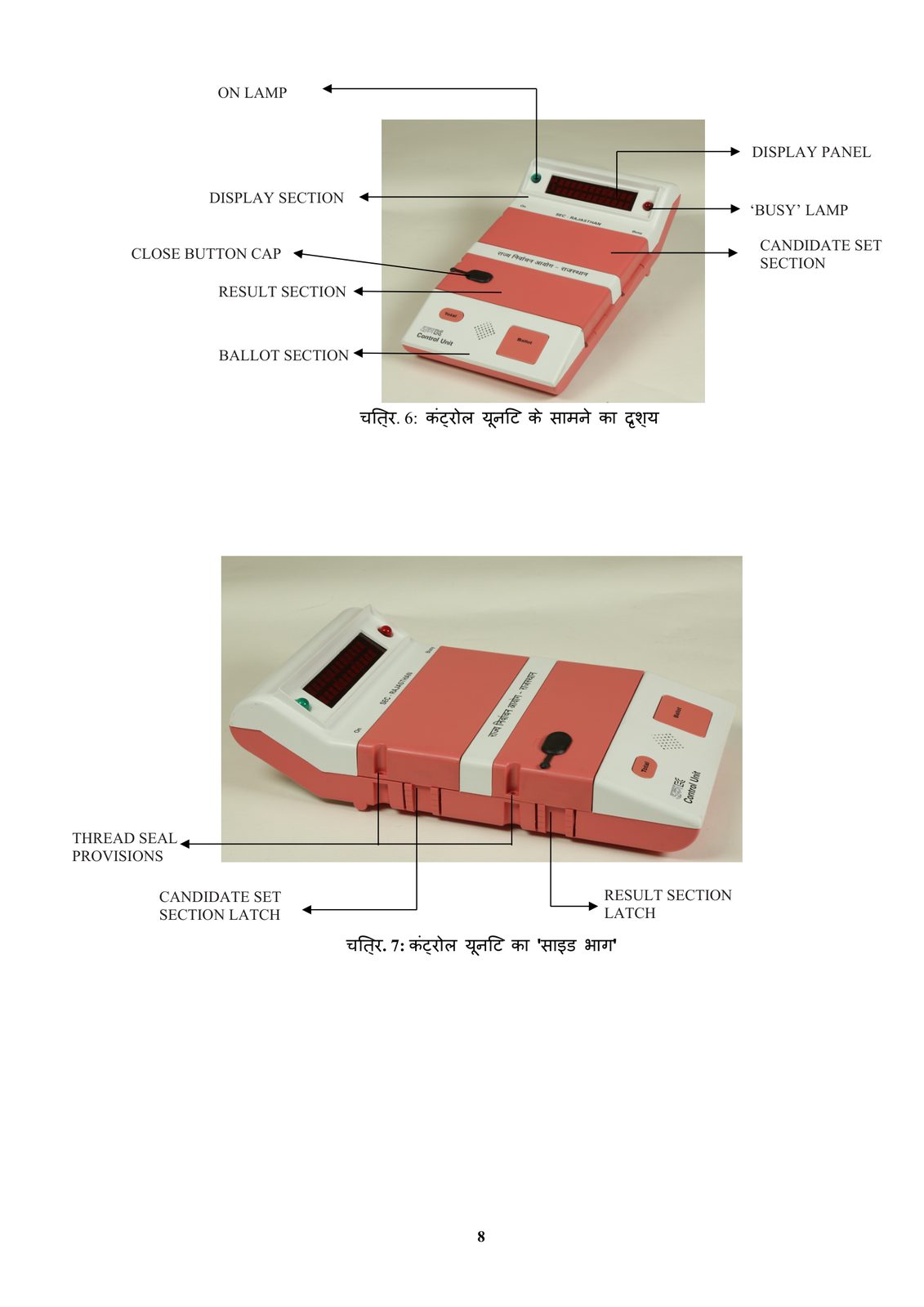

| चित्र 6 / 7 | Control Unit — front view and side section | page_08 | PO §1 |

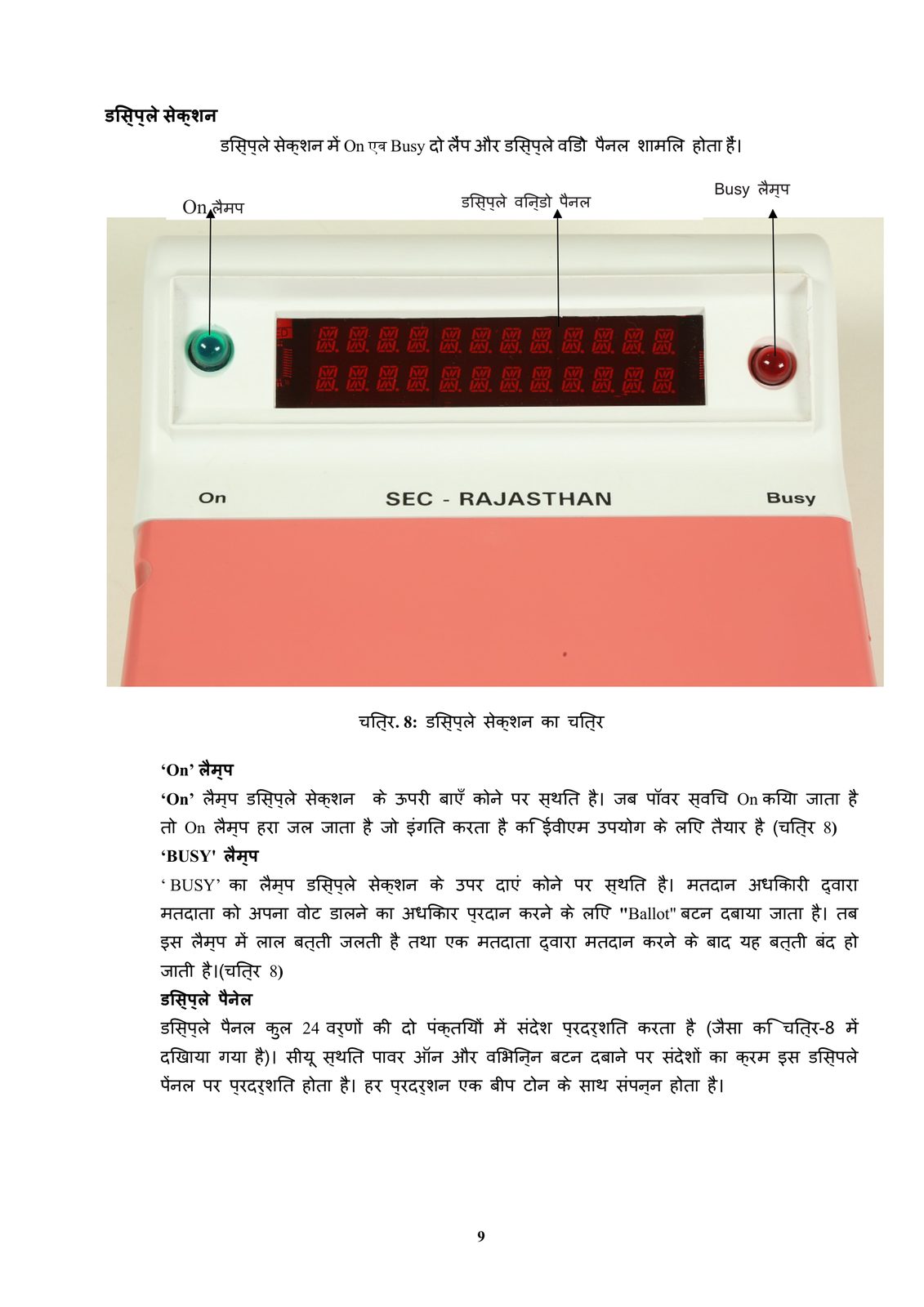

| चित्र 8 | Display section — BUSY lamp, display panel |
page_09 | PO §2 |

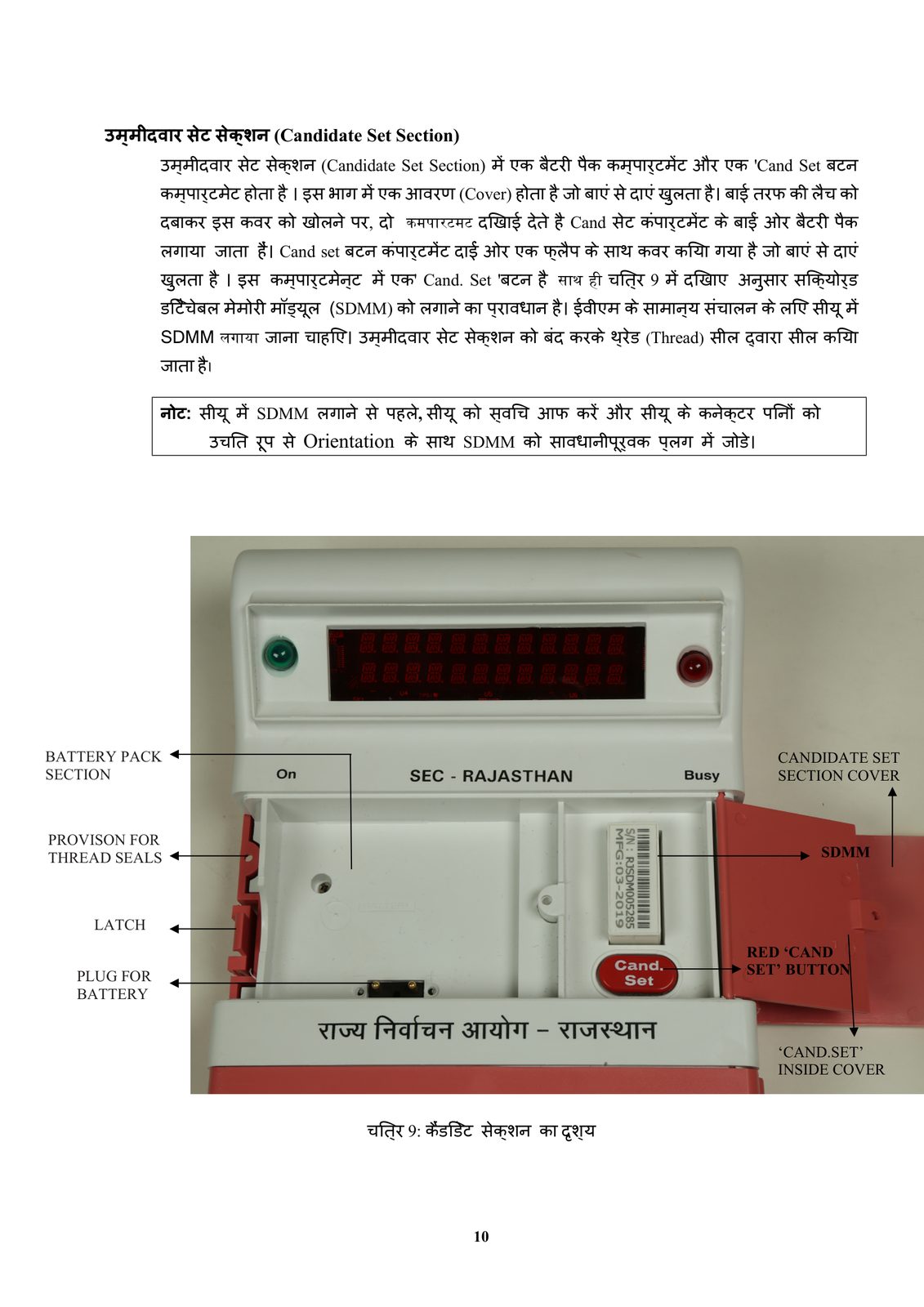

| चित्र 9 | Candidate Set section | page_10 | RO §8.4 |

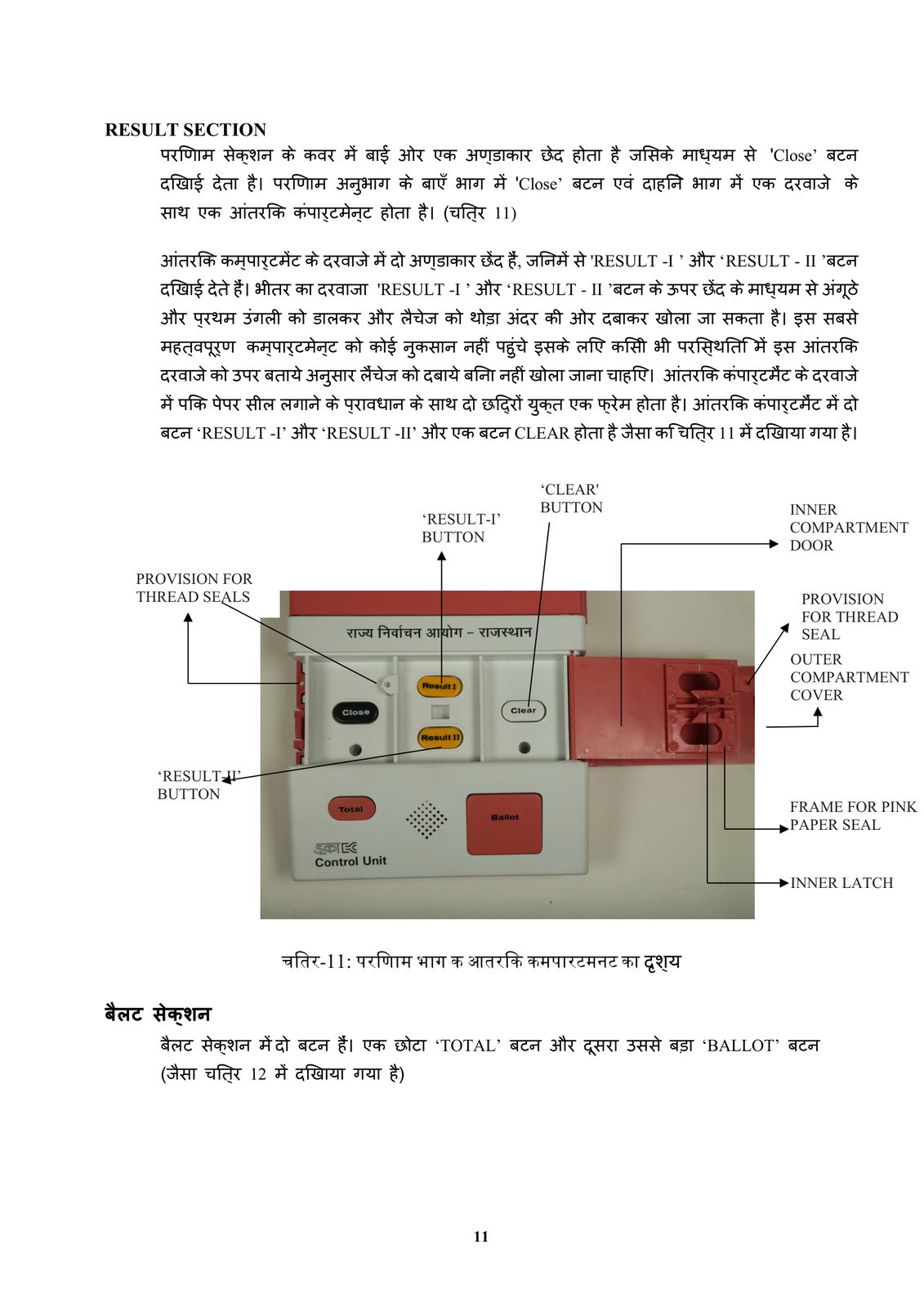

| चित्र 11 | Result section inner compartment | page_11 | PRO §4.1 |

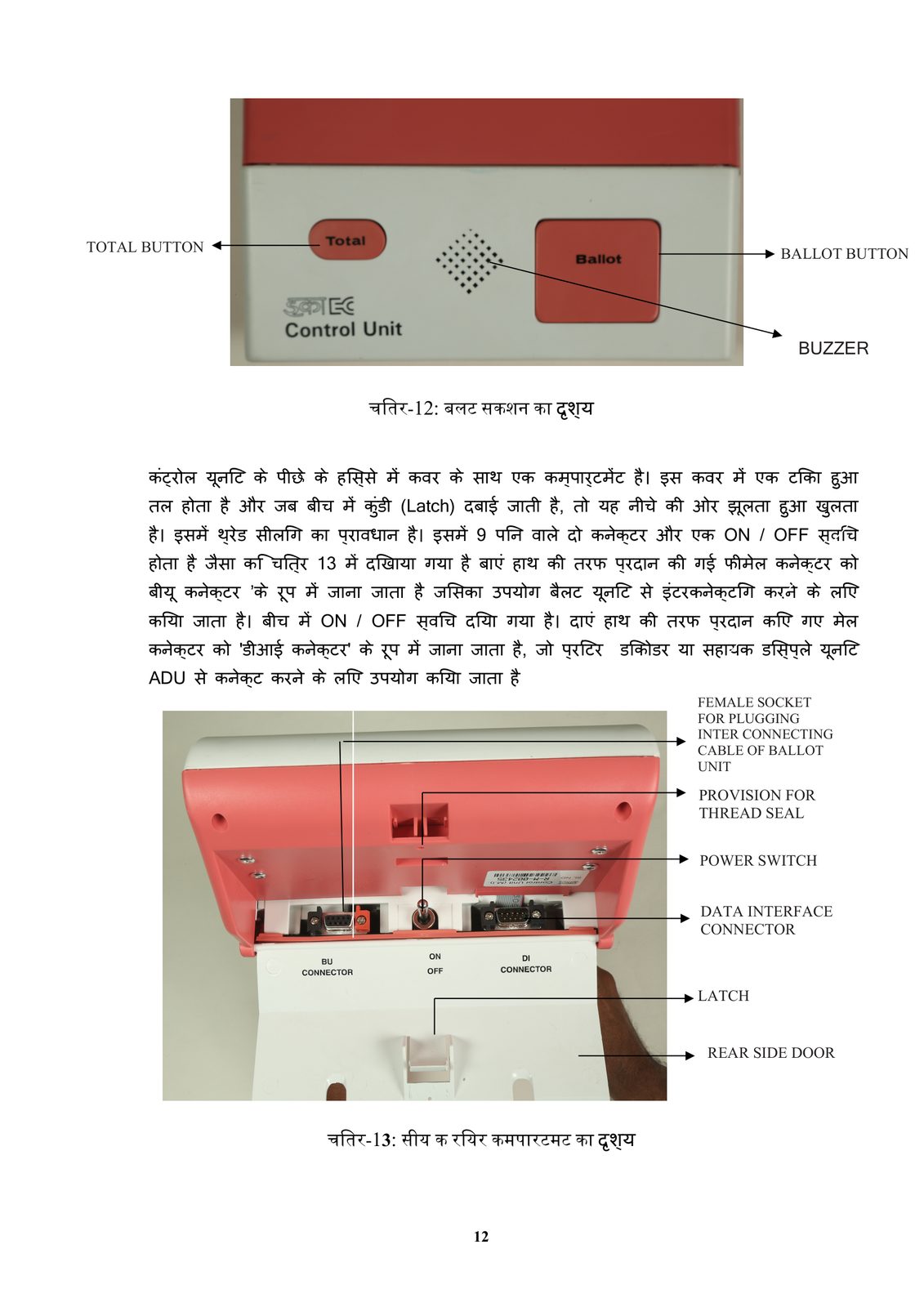

| चित्र 12 / 13 | Ballot section; CU rear compartment | page_12 | PRO §2.2 |

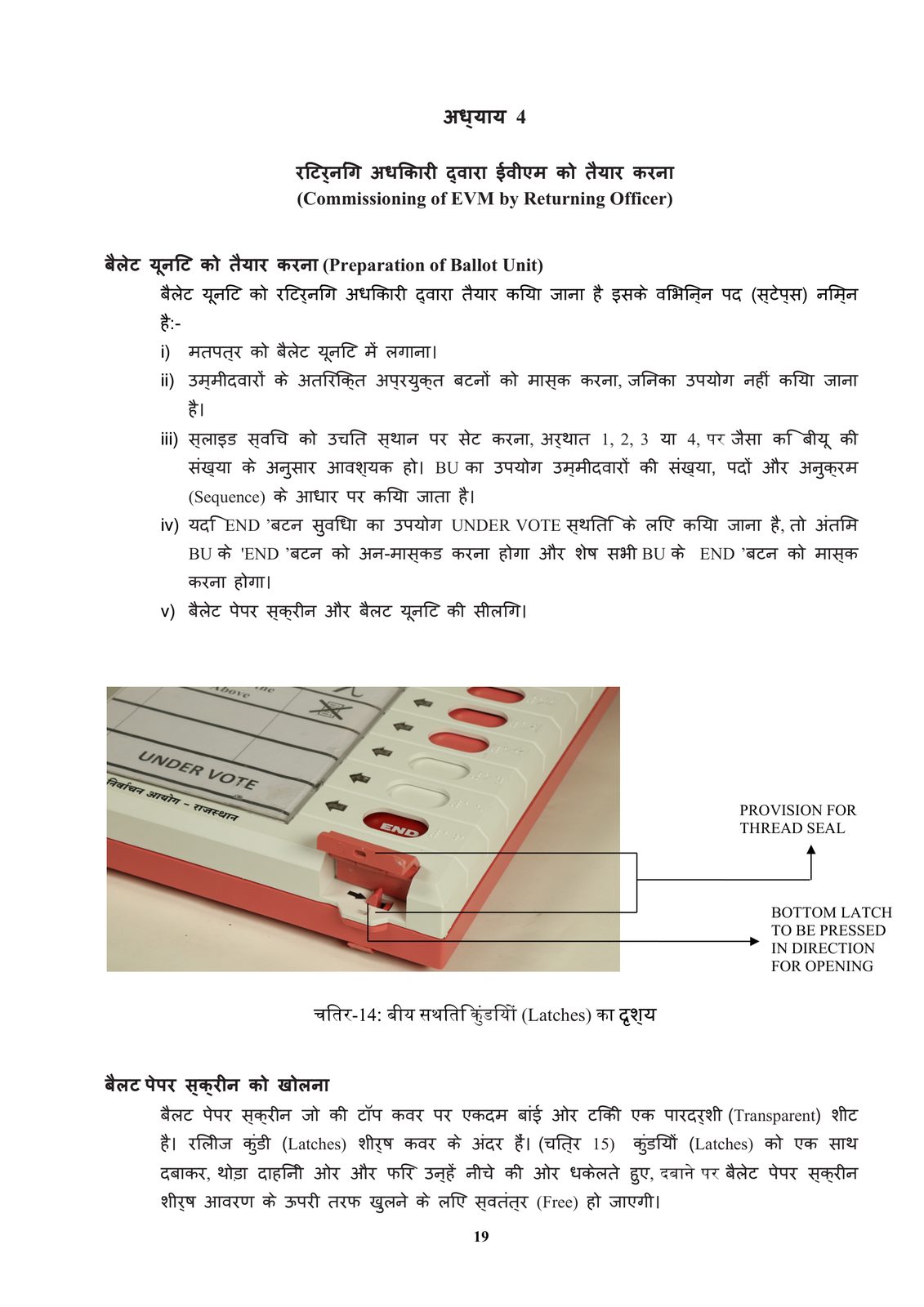

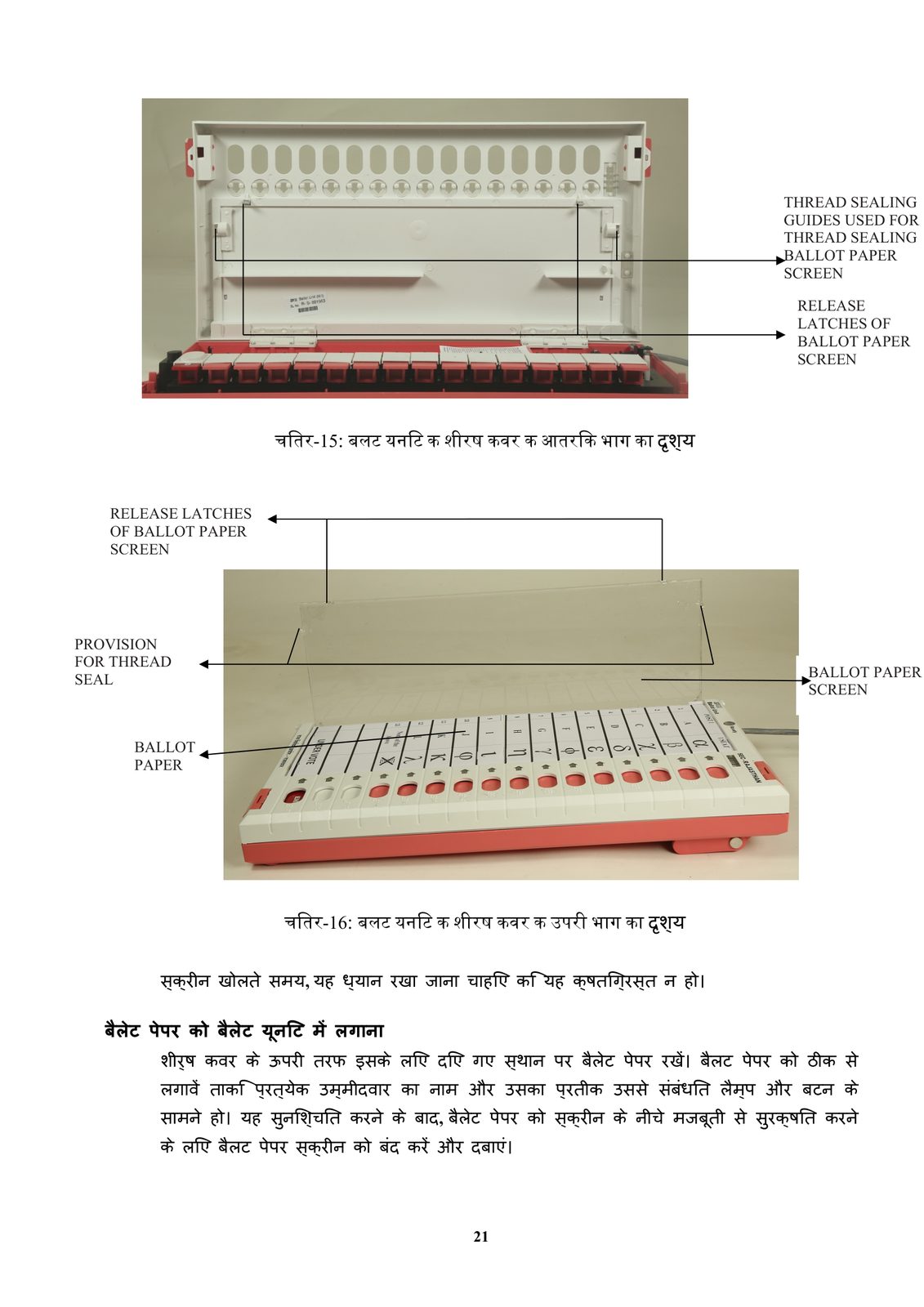

| चित्र 14 / 15 / 16 | BU latches; top cover inner and upper views | page_19 · page_21 | RO §8.4 |

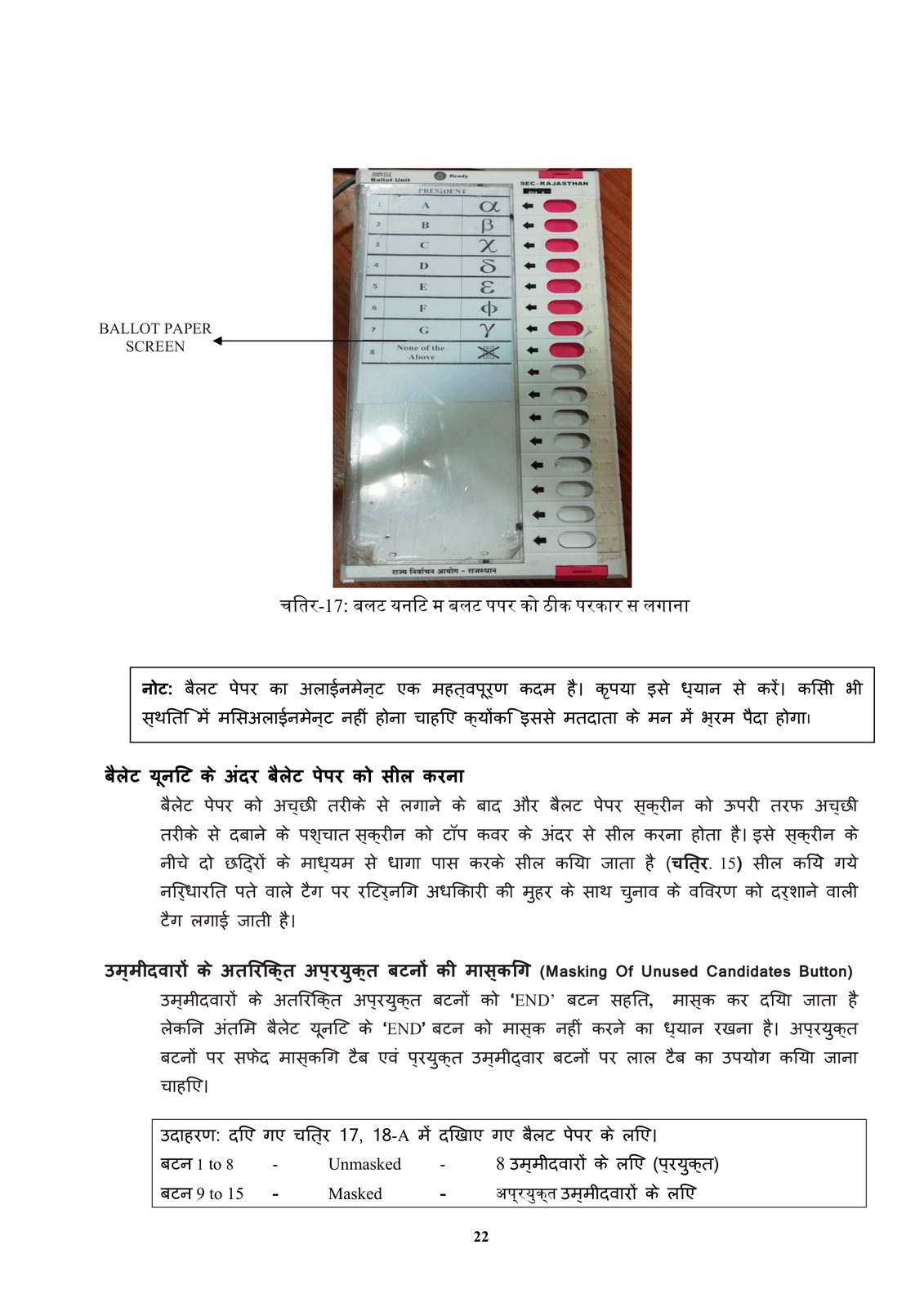

| चित्र 17 | Fitting the ballot paper correctly in the BU | page_22 | RO §8.4 — alignment |

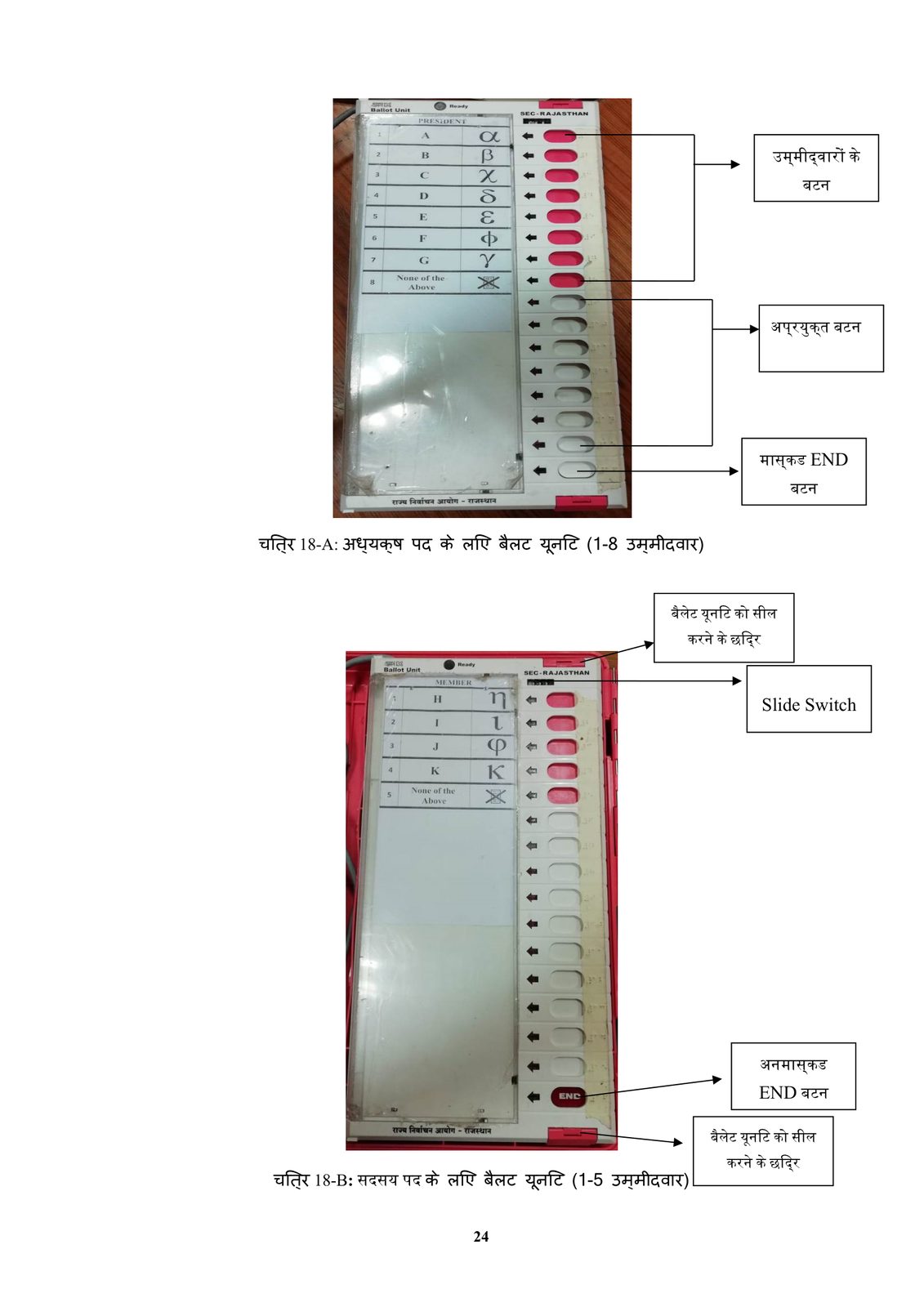

| चित्र 18-A / 18-B | BU laid out for 8 candidates and for 5 candidates; masked/unmasked buttons; slide switch; sealing holes | page_24 | RO §8.4 — masking |

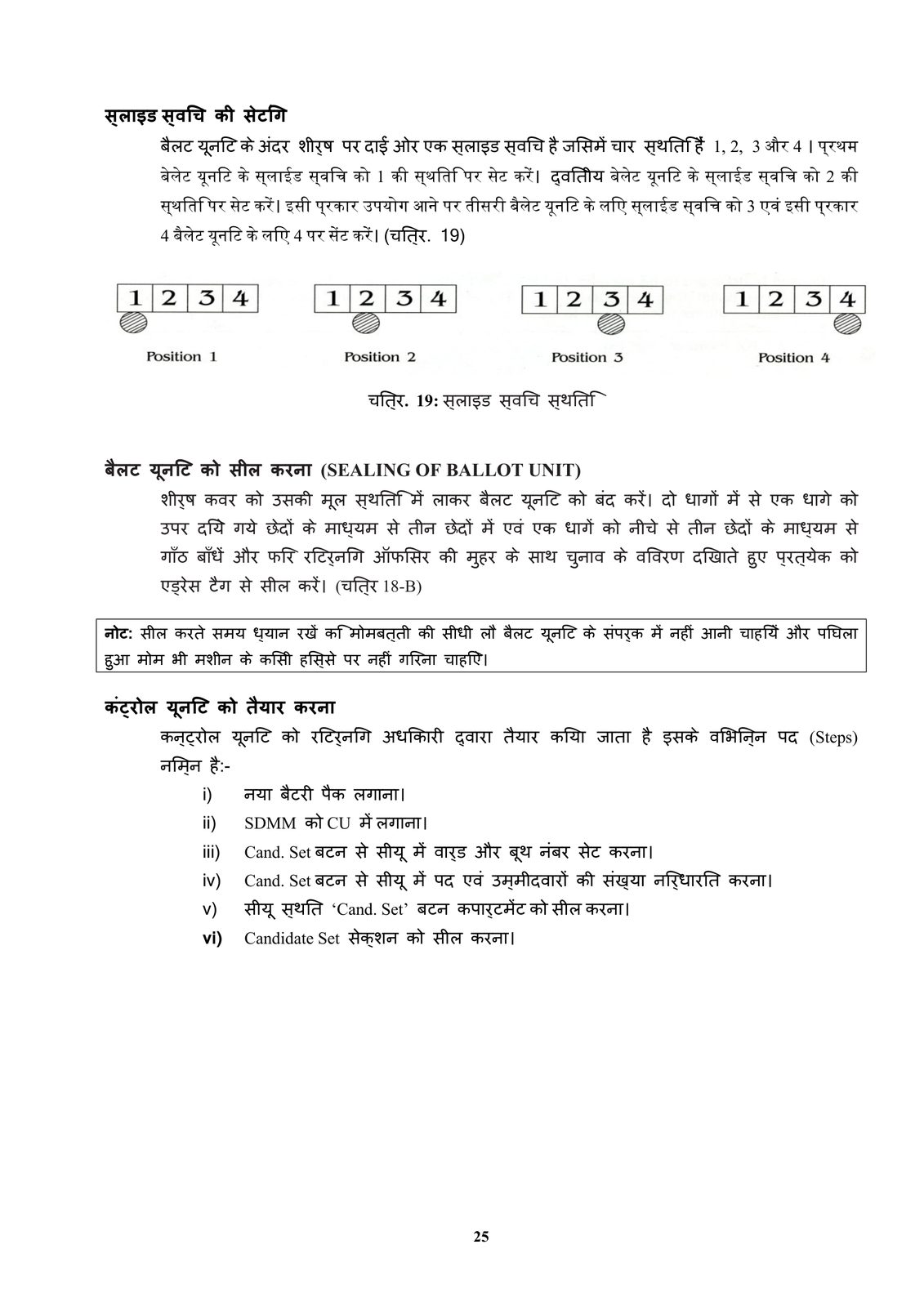

| चित्र 19 | Slide switch positions 1/2/3/4 | page_25 | RO §8.4 |

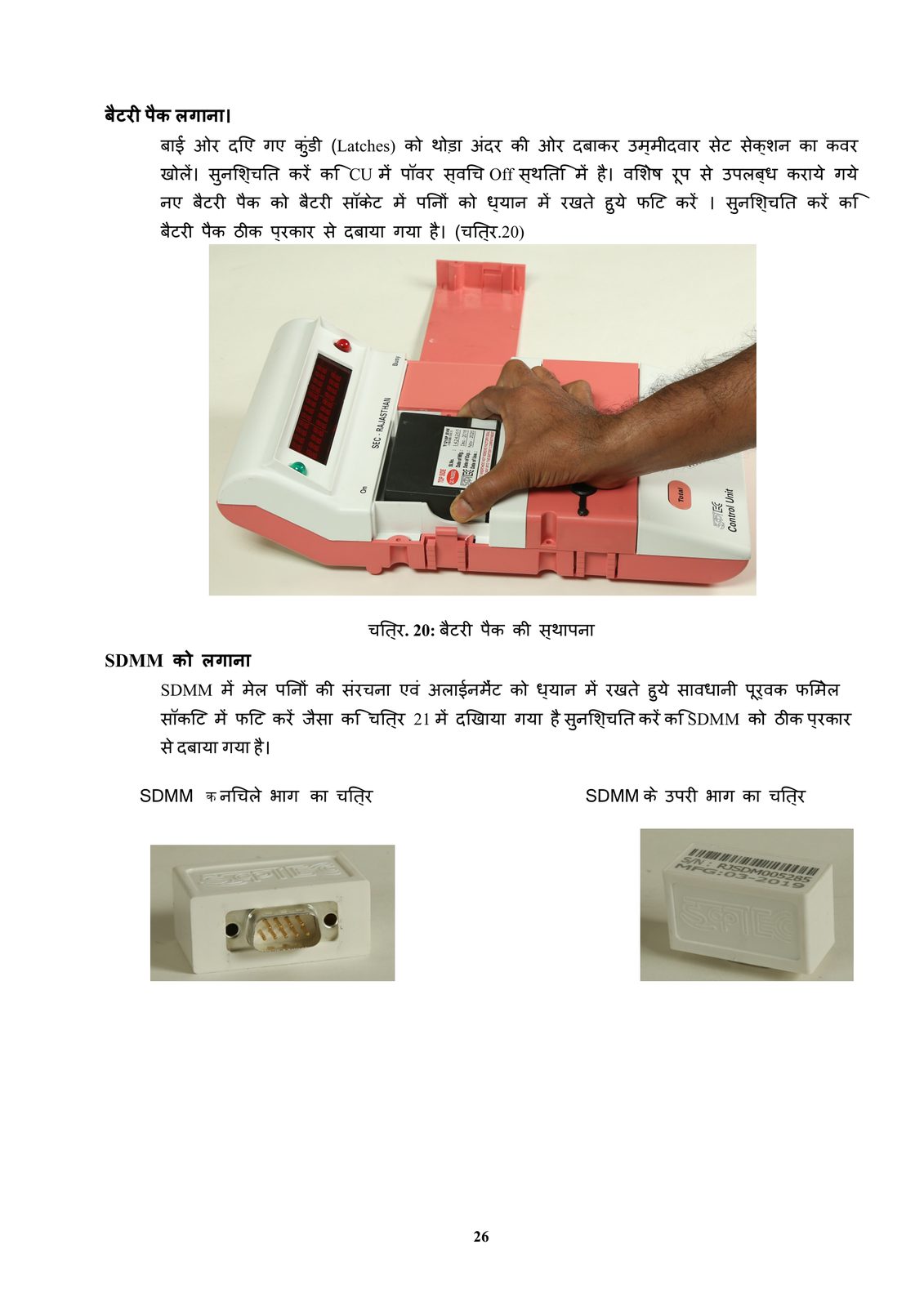

| चित्र 20 | Battery pack installation | page_26 | RO §8.4 |

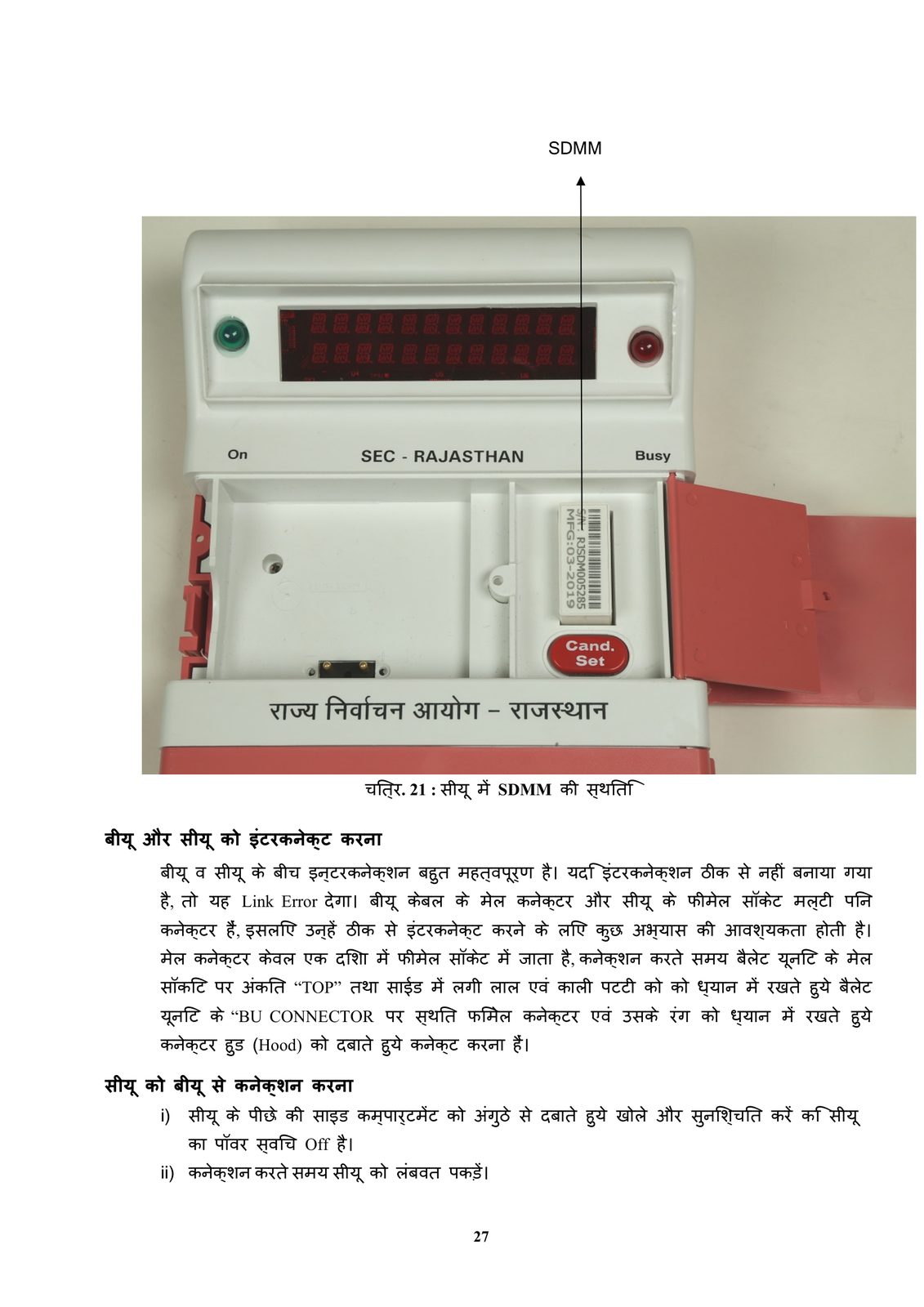

| चित्र 21 | SDMM seated in the CU | page_27 | RO §8.4; SDMM / DMM Sealing After Counting — the procedure |

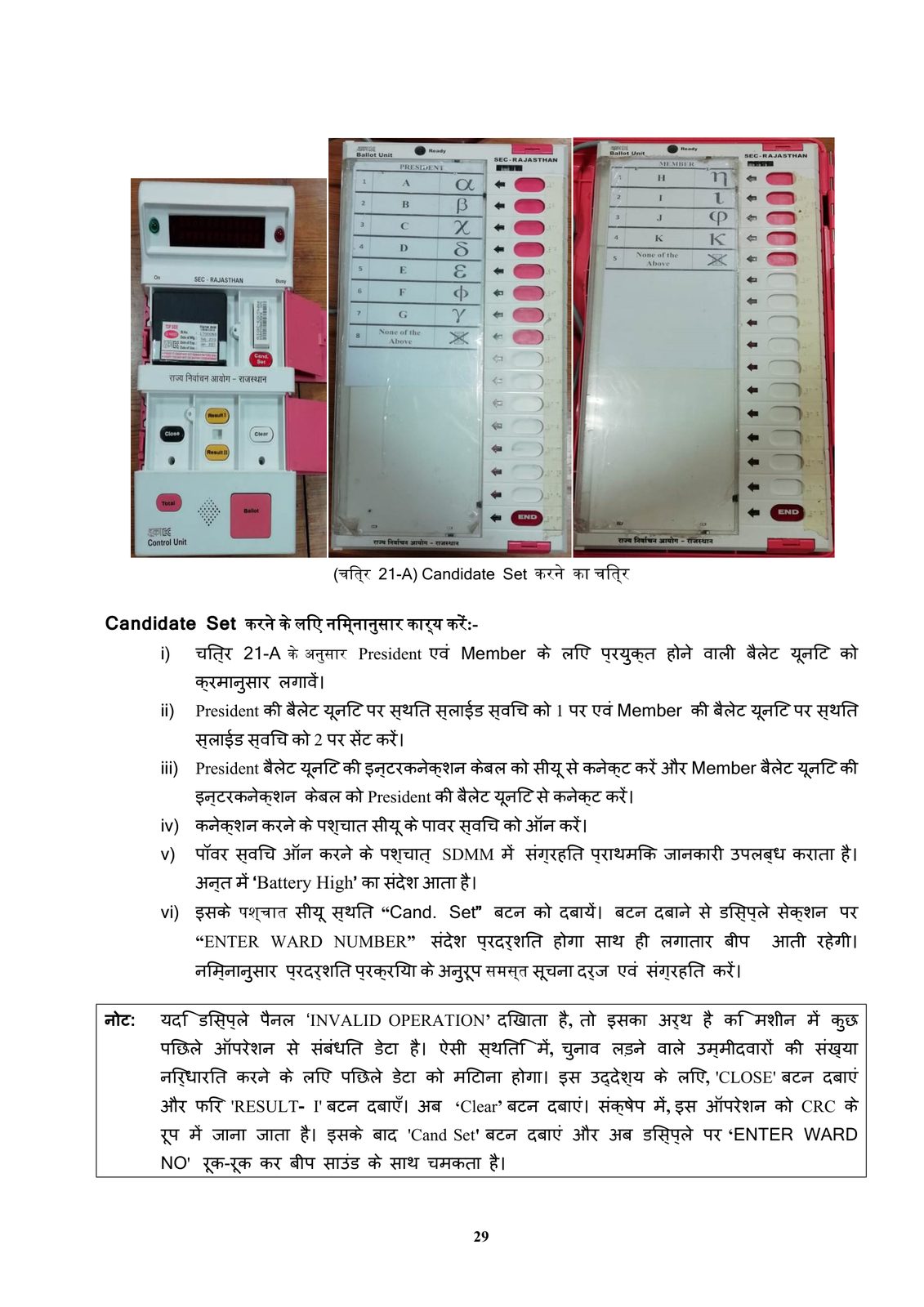

| चित्र 21-A | Candidate Set screens | page_29 | RO §8.4 |

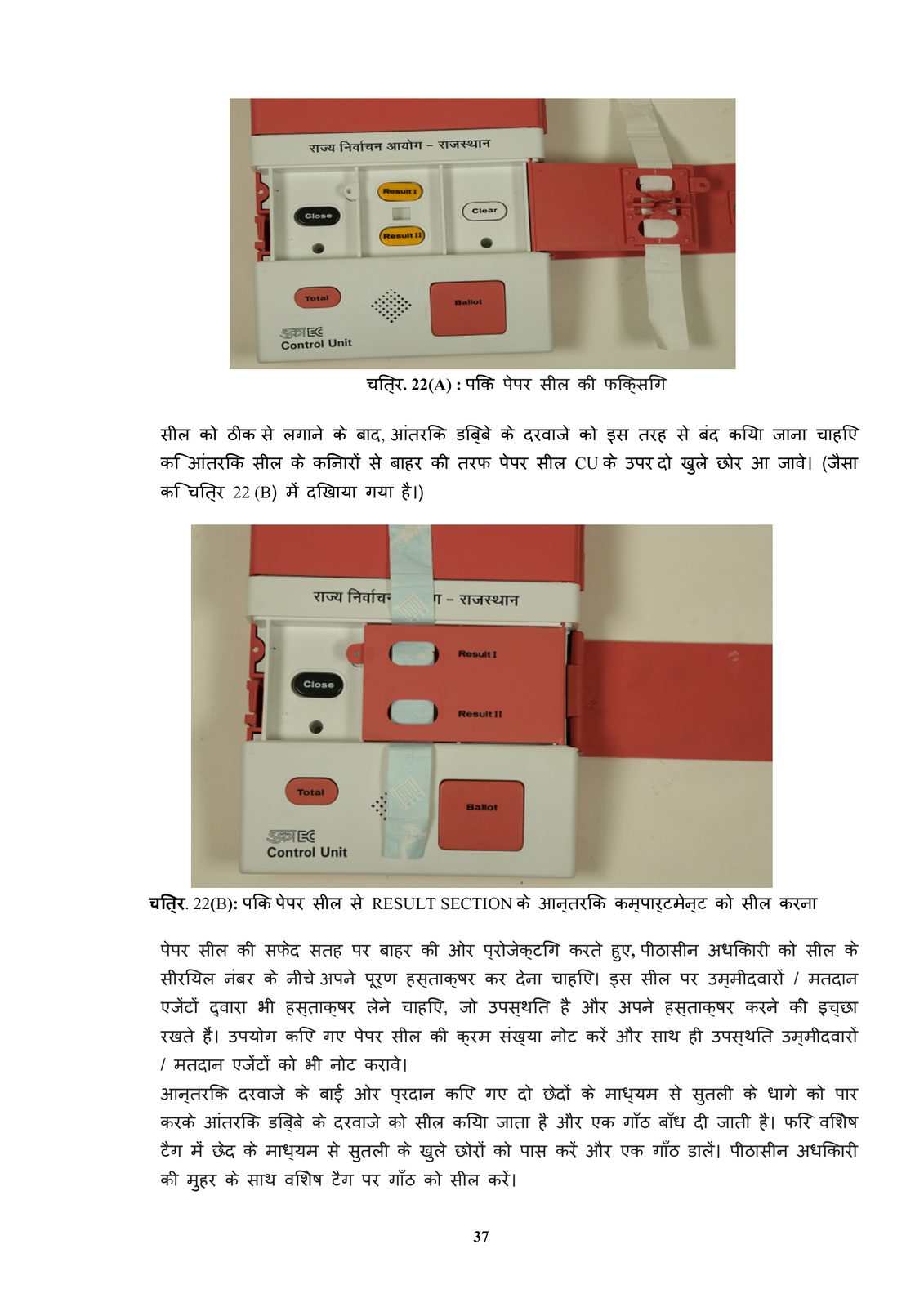

| चित्र 22(A) / 22(B) | Pink paper seal — fixing; sealing the Result Section inner compartment | page_37 | PRO §4.1 |

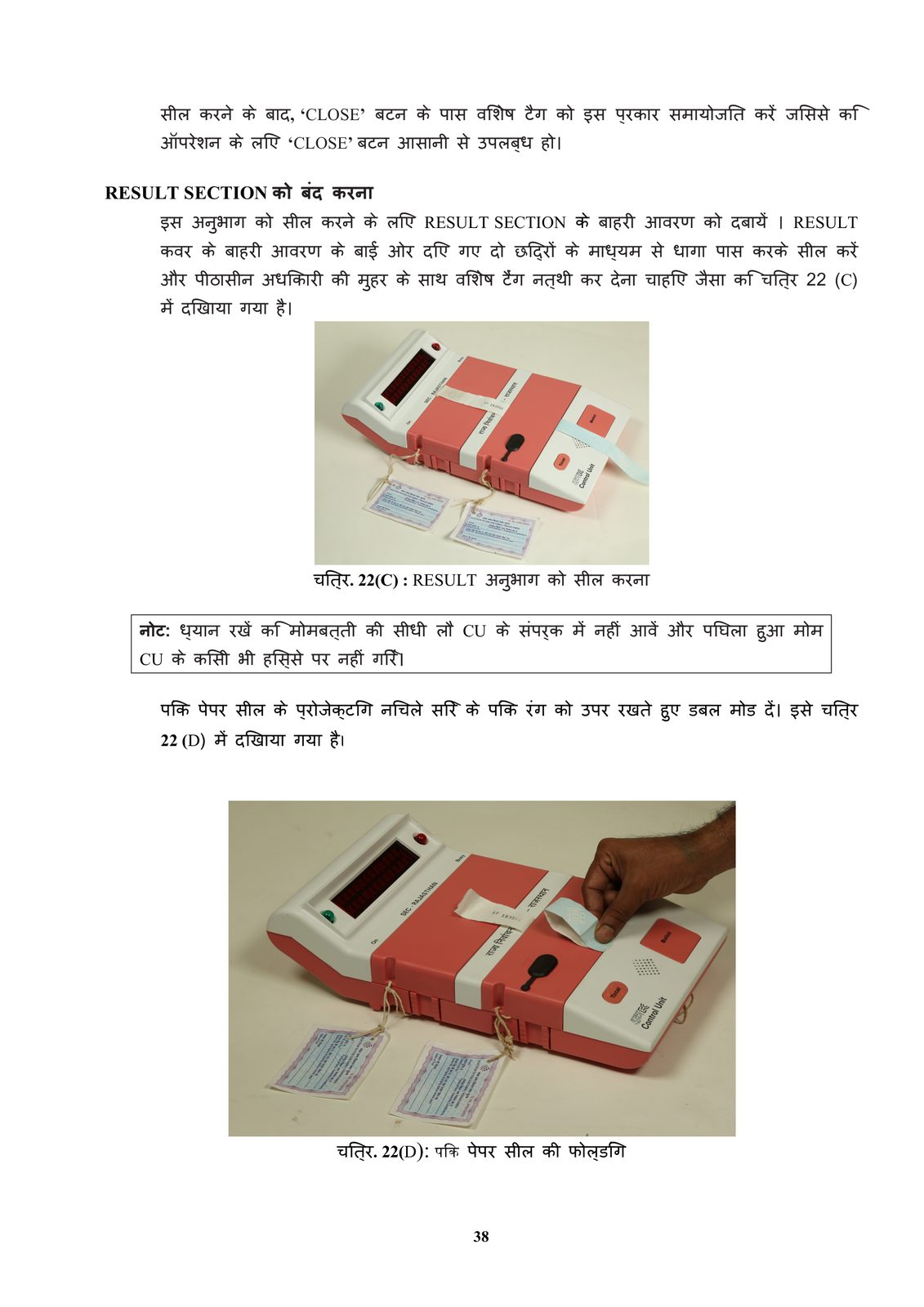

| चित्र 22(C) / 22(D) | Sealing the Result Section; folding the pink paper seal | page_38 | PRO §4.2 |

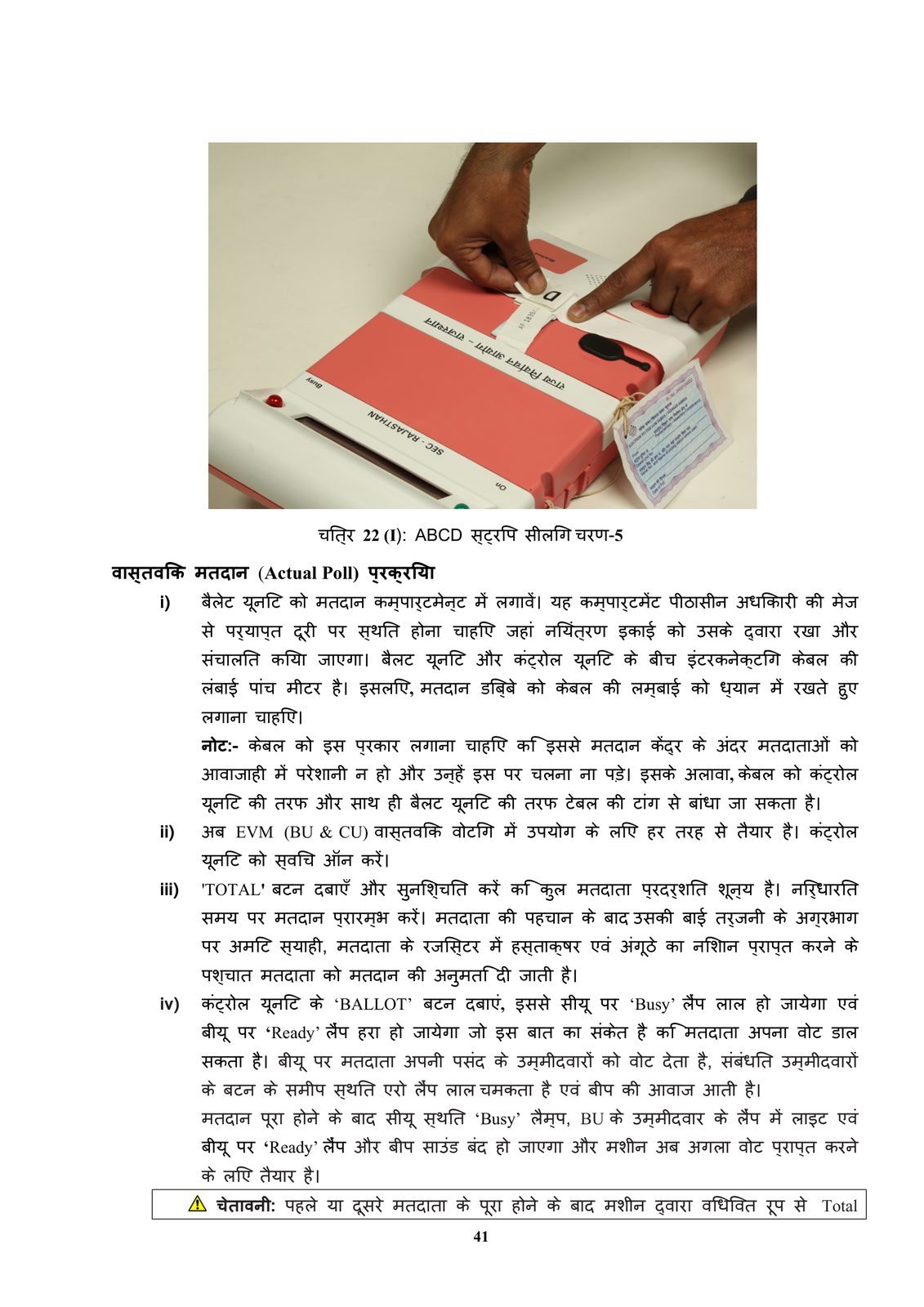

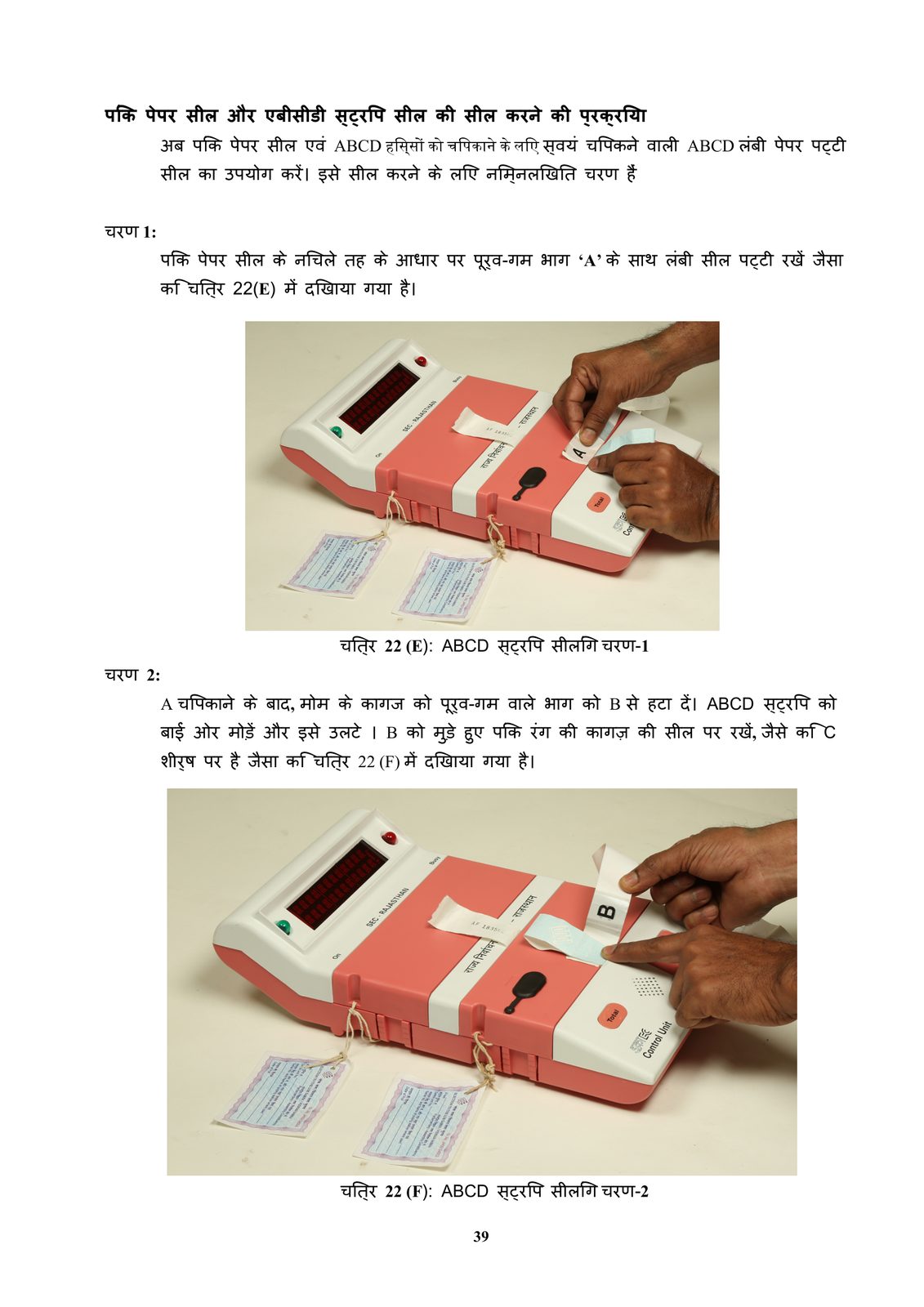

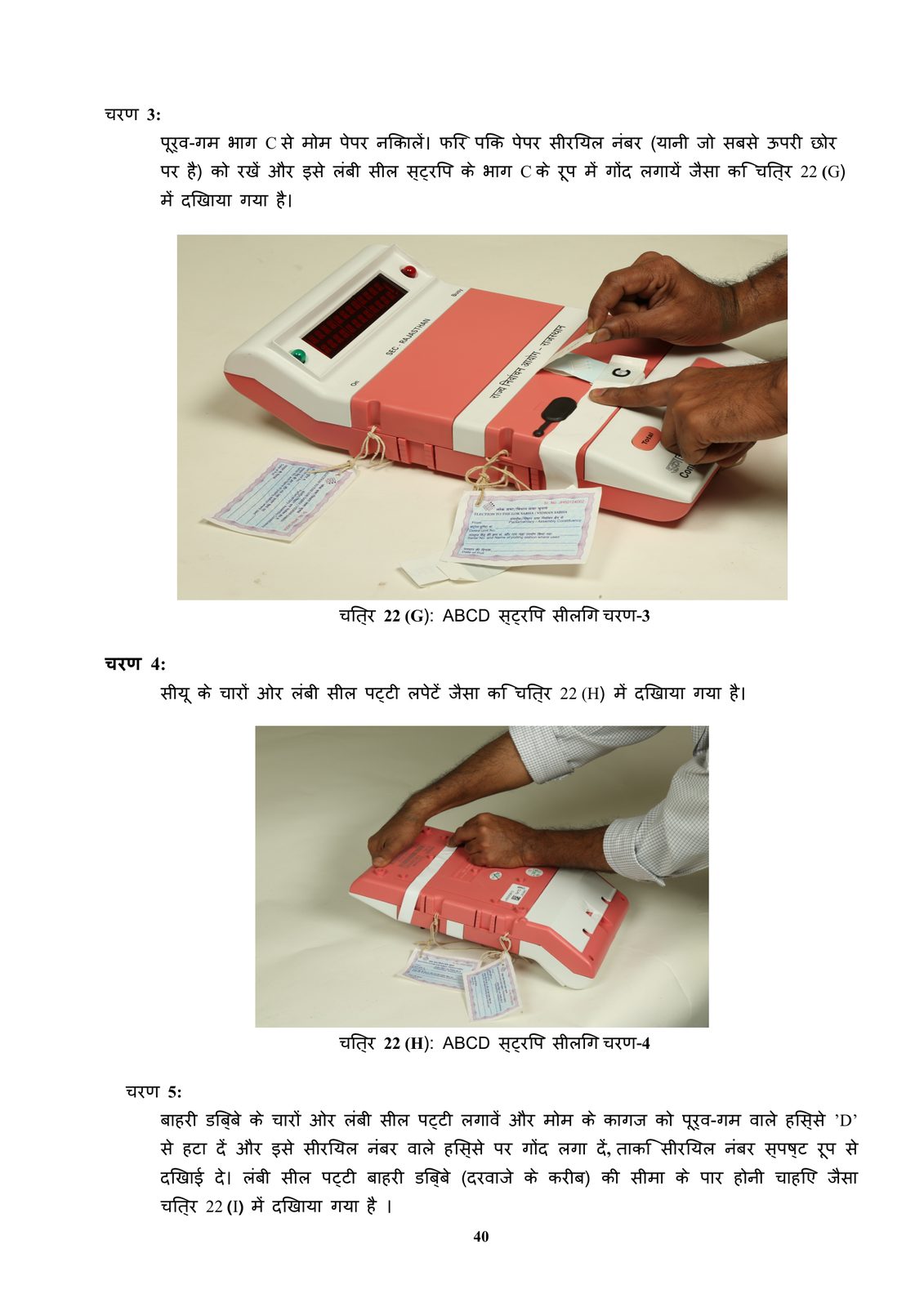

| चित्र 22(E)–(I) | ABCD strip sealing, steps 1–5 | page_39 · page_40 · page_41 | PRO §4.3 |

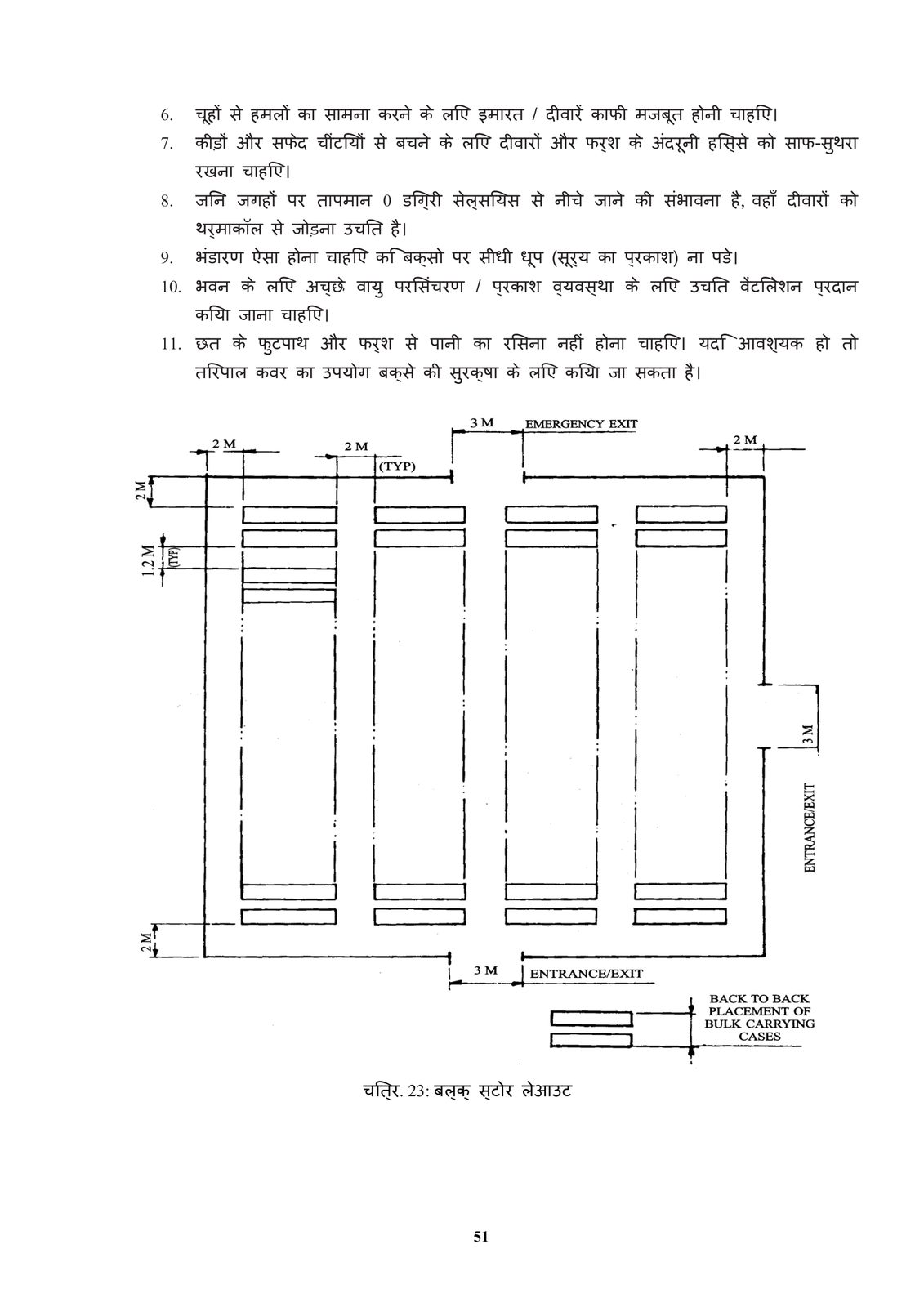

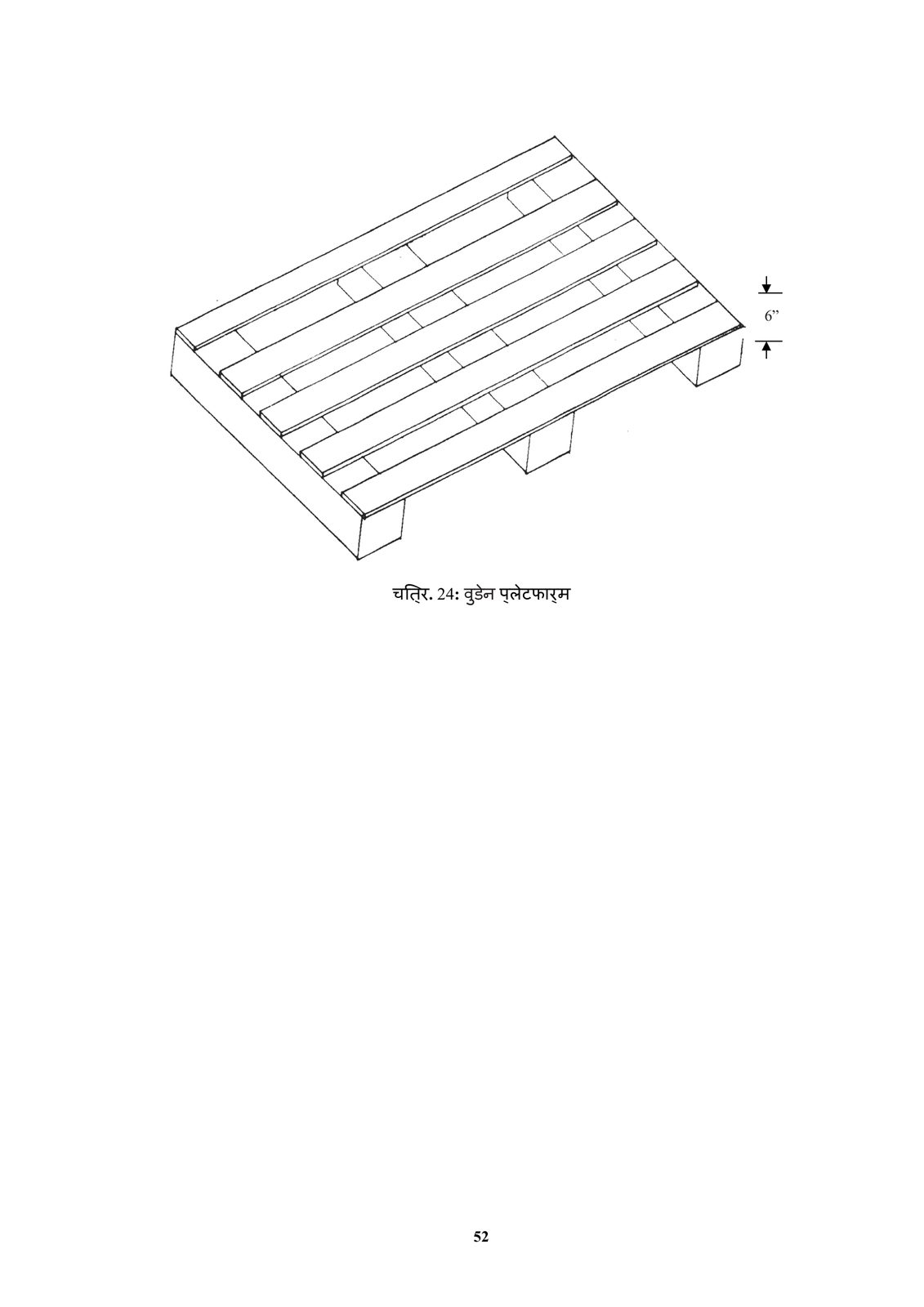

| चित्र 23 / 24 | Bulk store layout; wooden platform | page_51 · page_52 | RO — storage |
⚠️ These figures are MPSV. The Margdarsika states that the pink paper sealing procedure is identical for MPSV and M3A / MK-5, and that MPSV figures are used there purely for illustration [MG Ch.4-A, printed p 33]. For M3A / MK-5 carrying cases and unit layout, use the guide's own figures at [MG Ch.4-A, printed p 28] (FIG. 1 and FIG. 1(A)).
6. How to use these in a session
- Never describe a form you can show. Project the annexure image, then walk the columns.
- परिशिष्ट-15 (Check Memo) and परिशिष्ट-14 (task outline) are the two sheets a Presiding Officer should physically hold on poll day — print and laminate them.
- परिशिष्ट-8 is a filled specimen of Form 14-ग. Use it to teach the paper seal account at item 9 and the total at item 5 — the two entries the entire counting-day tamper check depends on [2292 पैरा 16(1), पैरा 20(1)].
- For the pink paper seal and ABCD strip, show
page_37→page_41in order; the five strip steps are the most-failed practical task. - परिशिष्ट-15A (envelope list) belongs at the close-of-poll station, next to the sealing table.
7. Still to be identified
- Margdarsika परिशिष्ट-1, 2, 3, 5 — extracted in the range
MG_annex_pdf096…pdf113but not yet individually identified. Do not cite them until read. - परिशिष्ट-20 — subject not yet confirmed.
- Letter 705 Annexures 1–4 (SDMM pink paper seal, envelope, two stickers) — referenced in SDMM / DMM Sealing After Counting — the procedure §4 but their format pages have not been located in the Compendium.
- The statutory printed forms (14-A, 14-C blank, 15, 15A, 16, 16A–16D, 19, 20) as they appear in the Rules' schedule — the ULB Manual holds them; not yet extracted.
